- Stock & Prices $ Price & Stock for MAX16141AAAF/VY+
- Part Number MAX16141AAAF/VY+
- Manufacturer Analog Devices
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - T1644Y+4
- Released Date Oct 9, 2020
- Last Modified Date Oct 2, 2024 12:16 PM UTC
- Pinout / Pin List Click Here (Member Only)
MAX16141AAAF/VY+ Details
-
Manufacturer Part Number:
MAX16141AAAF/VY+
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
16-LFCSP_SS-4X4X0.75
-
Package Description:
TQFN-16
-
Pin Count:
16
-
Manufacturer Package Code:
16-LFCSP_SS-4X4X0.75
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
2018-08-18
-
Manufacturer:
Analog Devices Inc
MAX16141AAAF/VY+ Frequently Asked Questions (FAQs)
-
A good PCB layout for the MAX16141AAAF/VY+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery or power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
-
The MAX16141AAAF/VY+ does not require calibration for voltage monitoring. The device has an internal voltage reference and a high-accuracy ADC that provides accurate voltage measurements without the need for calibration. However, it's recommended to follow the datasheet guidelines for setting the voltage monitoring threshold and hysteresis to ensure accurate and reliable voltage monitoring.
-
Yes, the MAX16141AAAF/VY+ is rated for operation over a wide temperature range of -40°C to +125°C. However, it's essential to ensure that the device is properly derated for high-temperature operation and that the PCB layout and thermal management are designed to handle the increased temperature. Additionally, the device's accuracy and reliability may be affected at high temperatures, so it's recommended to consult the datasheet and perform thorough testing before deploying the device in a high-temperature environment.
-
The MAX16141AAAF/VY+ has a digital output that can be easily interfaced with a microcontroller or other digital devices. The device provides a 1.8V-compatible digital output that can be connected directly to most microcontrollers or digital devices. The datasheet provides detailed information on the digital output protocol and timing, making it easy to interface the device with a wide range of digital devices.
-
The MAX16141AAAF/VY+ has a typical response time of 10µs for voltage monitoring. This means that the device can detect changes in the input voltage and provide an accurate measurement within 10µs. The response time may vary depending on the input voltage, temperature, and other factors, so it's recommended to consult the datasheet and perform thorough testing to determine the actual response time in a specific application.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MAX16141AAAF/VY+ Overview

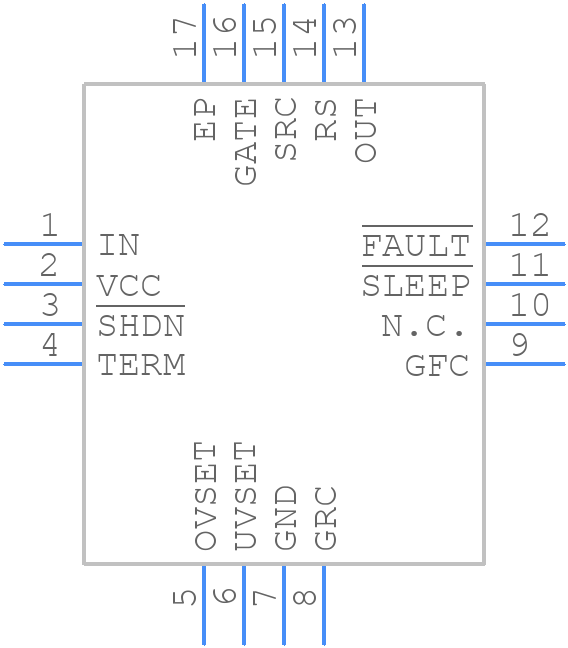

Use the download button to access the MAX16141AAAF/VY+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX16,
or try a keyword search, such as Power Management Circuits
