MAX16141AAAF/VY+T - Analog Devices

Description: 3.5V to 36V Ideal Diode Controllers with Voltage and Current Circuit Breaker

Download MAX16141AAAF/VY+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

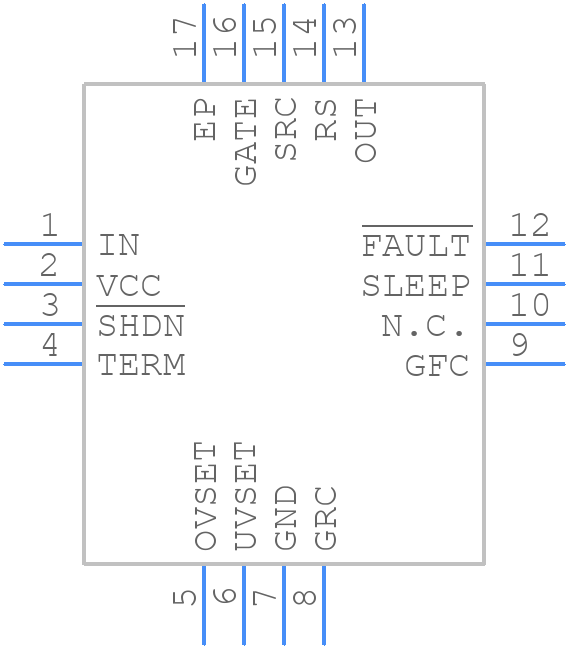

MAX16141AAAF/VY+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16141AAAF/VY+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX16141AAAF/VY+T
click to zoom
3D Models
MAX16141AAAF/VY+T - Analog Devices - 3D model - Quad Flat No-Lead - MAX16141AAAF/VY+T
click to zoom

MAX16141AAAF/VY+T Details

  • Manufacturer Part Number:

    MAX16141AAAF/VY+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP_SS-4X4X0.75

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP_SS-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-08-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX16141AAAF/VY+T Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding layout, keeping the device's ground pin connected to the system's ground plane. Place the device close to the battery or power source, and use short, wide traces for power and ground connections to minimize noise and voltage drops.
  • Consult the datasheet and application notes for guidance on configuring the device for your specific battery chemistry and capacity. You may need to adjust the voltage and current sense resistors, as well as the gain and offset settings, to ensure accurate monitoring and protection.
  • The MAX16141AAAF/VY+T can operate up to 36V and 100mA. To protect the device from overvoltage and overcurrent conditions, use external protection components such as TVS diodes, zener diodes, or fuses, and ensure that the device is properly bypassed and decoupled.
  • The MAX16141AAAF/VY+T provides an I2C interface for communication with microcontrollers or other digital systems. Ensure that the interface is properly configured, and use pull-up resistors on the SCL and SDA lines to prevent bus contention.
  • The MAX16141AAAF/VY+T provides a voltage measurement accuracy of ±1.5% and a current measurement accuracy of ±2.5%. The device has a 12-bit ADC, providing a resolution of 0.5mV and 0.5mA for voltage and current measurements, respectively.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX16141AAAF/VY+T Overview

Use the download button to access the MAX16141AAAF/VY+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX16, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
