MAX16163ANT0D+ - Analog Devices

Description: Nano Power On/Off Controller with Programmable Sleep Time, 6 WLP

Download MAX16163ANT0D+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

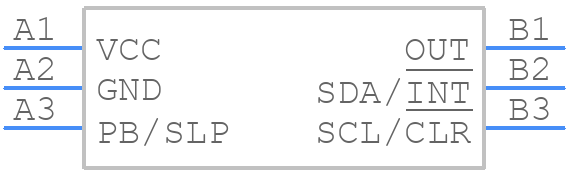

MAX16163ANT0D+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16163ANT0D+ - Analog Devices PCB footprint - BGA - BGA - 6 PIN WLP-1
click to zoom
3D Models
MAX16163ANT0D+ - Analog Devices - 3D model - BGA - 6 PIN WLP-1
click to zoom

MAX16163ANT0D+ Details

  • Manufacturer Part Number:

    MAX16163ANT0D+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-WLCSP-N/A

  • Package Description:

    WLP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-10-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-XBGA-B6

  • Length:

    1.538 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.108 mm

MAX16163ANT0D+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16163ANT0D+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery or power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The MAX16163ANT0D+ does not require calibration for voltage monitoring. The device has an internal voltage reference and a high-accuracy ADC that provides accurate voltage measurements without the need for calibration. However, it's recommended to follow the datasheet guidelines for setting the voltage threshold and hysteresis values to ensure accurate monitoring.
  • Yes, the MAX16163ANT0D+ can be used to monitor multiple voltage rails. The device has a single input pin that can be connected to a voltage divider network to monitor multiple voltage rails. However, it's recommended to use a separate MAX16163ANT0D+ device for each voltage rail to ensure accurate and independent monitoring.
  • The MAX16163ANT0D+ can handle input voltages up to 28V. However, it's recommended to use a voltage divider network to scale down the input voltage to within the device's recommended operating range of 0V to 5.5V to ensure accurate monitoring and prevent damage to the device.
  • The MAX16163ANT0D+ can be interfaced with a microcontroller using a digital interface such as I2C or SPI. The device provides a digital output that indicates when the input voltage exceeds the set threshold, and the microcontroller can read this output to take appropriate action. The datasheet provides detailed information on the digital interface and communication protocol.
