MAX16165ATPH+T - Analog Devices

Description: Highly Integrated, 4-Channel Sequencer and Supervisor

Download MAX16165ATPH+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

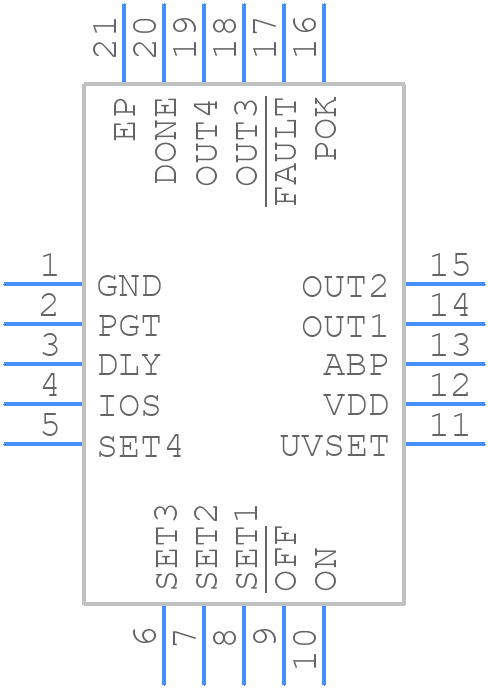

Symbol
MAX16165ATPH+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16165ATPH+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2044+3C
click to zoom
3D Models
MAX16165ATPH+T - Analog Devices - 3D model - Quad Flat No-Lead - T2044+3C
click to zoom

MAX16165ATPH+T Details

  • Manufacturer Part Number:

    MAX16165ATPH+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-4X4X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-12-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.17 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +0.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX16165ATPH+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16165ATPH+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The MAX16165ATPH+T does not require calibration for voltage measurements, as it has an internal voltage reference. However, for current measurements, calibration is required to compensate for the sense resistor tolerance. This can be done by measuring the sense resistor value and adjusting the calibration register accordingly.
  • The MAX16165ATPH+T has an operating temperature range of -40°C to +125°C, but it's recommended to operate it within -20°C to +85°C for optimal performance and accuracy.
  • Yes, the MAX16165ATPH+T can be used for high-voltage battery monitoring applications up to 72V. However, it's essential to ensure that the device is properly configured and the input voltage is within the specified range to avoid damage or inaccurate measurements.
  • The MAX16165ATPH+T has a 3-wire SPI interface that can be easily interfaced with most microcontrollers or digital systems. The device also has a dedicated interrupt pin that can be used to alert the microcontroller of changes in the battery voltage or current.
