MAX16166AWPH+ - Analog Devices

Description: Highly Integrated, 4-Channel Sequencer and Supervisor

Download MAX16166AWPH+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

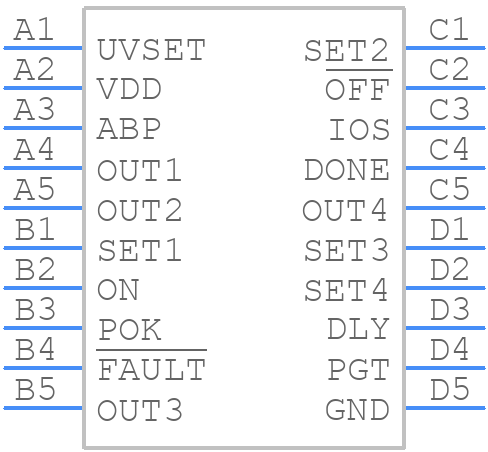

MAX16166AWPH+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16166AWPH+ - Analog Devices PCB footprint - BGA - BGA - W201C2+1
click to zoom
3D Models
MAX16166AWPH+ - Analog Devices - 3D model - BGA - W201C2+1
click to zoom

MAX16166AWPH+ Details

  • Manufacturer Part Number:

    MAX16166AWPH+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-WLCSP-N/A

  • Package Description:

    WLP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-12-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SEQUENCER

  • JESD-30 Code:

    R-XBGA-B20

  • Length:

    2.027 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA20,4X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    0.17 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +0.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.627 mm

MAX16166AWPH+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX16166AWPH+ is to keep the input and output traces as short as possible, and to use a solid ground plane to reduce noise and electromagnetic interference (EMI). Additionally, it is recommended to place a 10nF capacitor between the VCC and GND pins to filter out high-frequency noise.
  • The MAX16166AWPH+ can be configured for a specific voltage monitoring application by setting the voltage threshold levels using the THRESH pin and the hysteresis level using the HYST pin. The device can also be configured to monitor multiple voltage rails by using multiple channels and setting the channel select pins (CH0-CH3) accordingly.
  • The maximum voltage that can be monitored by the MAX16166AWPH+ is 5.5V. The device is designed to monitor voltages from 0V to 5.5V, and can be used to monitor a wide range of voltage rails, including 1.8V, 2.5V, 3.3V, and 5V.
  • The MAX16166AWPH+ provides accurate voltage monitoring with a typical accuracy of ±1.5% over the entire operating temperature range of -40°C to +125°C. The device also has a low temperature coefficient, which ensures that the voltage monitoring accuracy remains consistent over a wide range of temperatures.
  • Yes, the MAX16166AWPH+ is designed for high-reliability applications and is qualified to the automotive AEC-Q100 standard. The device is also built with a robust design and has undergone rigorous testing to ensure its reliability and performance in harsh environments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX16166AWPH+ Overview

Use the download button to access the MAX16166AWPH+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX16, or try a keyword search, such as Power Management Circuits
