MAX162CCNG+ - Analog Devices

Description: Analog to Digital Converters - ADC 12-Bit 308ksps 5V Precision ADC

Download MAX162CCNG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

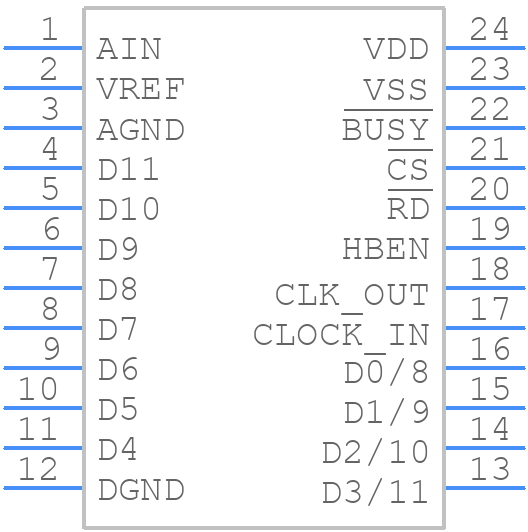

Symbol
MAX162CCNG+ - Analog Devices - PCB symbol
click to zoom

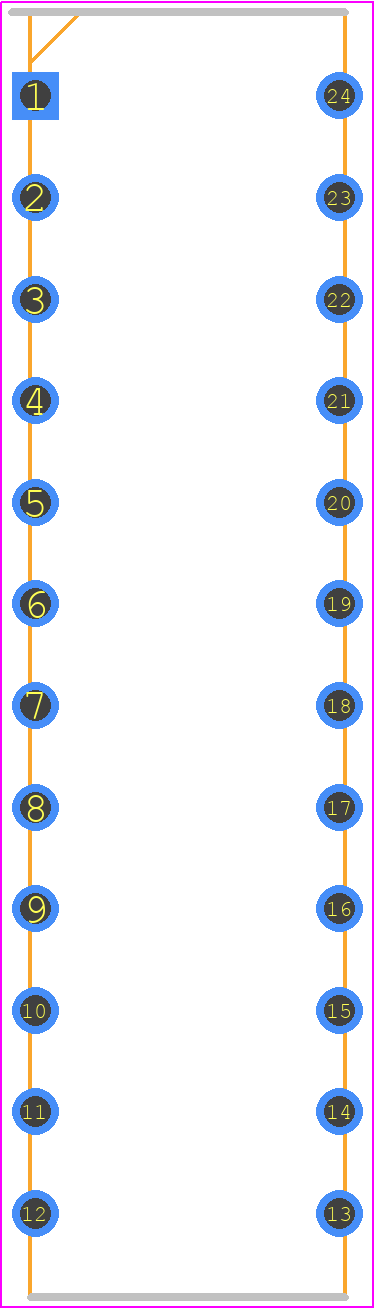

PCB Footprints
MAX162CCNG+ - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N24+3
click to zoom
3D Models
MAX162CCNG+ - Analog Devices - 3D model - Dual-In-Line Packages - N24+3
click to zoom

MAX162CCNG+ Details

  • Manufacturer Part Number:

    MAX162CCNG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-PDIP-300_MIL

  • Package Description:

    LEAD FREE, PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-PDIP-300_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5 V

  • Conversion Time-Max:

    3.25 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    30.545 mm

  • Linearity Error-Max (EL):

    0.012%

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -15 V

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    OFFSET BINARY, COMPLEMENTARY OFFSET BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

MAX162CCNG+ Frequently Asked Questions (FAQs)

  • The MAX162CCNG+ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the power source, use a solid ground plane, and keep the input and output traces short and separate. Additionally, it is recommended to use a 10uF ceramic capacitor between the VIN and GND pins to filter out high-frequency noise.
  • The output capacitor value depends on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to use a capacitor with a value of at least 10uF for output voltages up to 5V, and at least 22uF for output voltages above 5V. However, it is recommended to consult the datasheet and perform simulations to determine the optimal capacitor value for your specific application.
  • The MAX162CCNG+ can handle input voltages up to 28V, but it is recommended to operate within the specified input voltage range of 4.5V to 16V for optimal performance and reliability.
  • To ensure stability, it is recommended to use a minimum output capacitor value of 10uF, and to place a 1uF ceramic capacitor between the VOUT and GND pins. Additionally, it is recommended to use a low-ESR output capacitor and to minimize the distance between the output capacitor and the device.
  • The MAX162CCNG+ can deliver up to 300mA of output current, but it is recommended to derate the output current based on the ambient temperature and the input voltage to ensure reliable operation.
