MAX16550BGPN+ - Analog Devices

Description: Integrated Protection IC on 12V Bus with an Integrated MOSFET, Lossless Current Sensing, and PMBus Interface

Download MAX16550BGPN+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

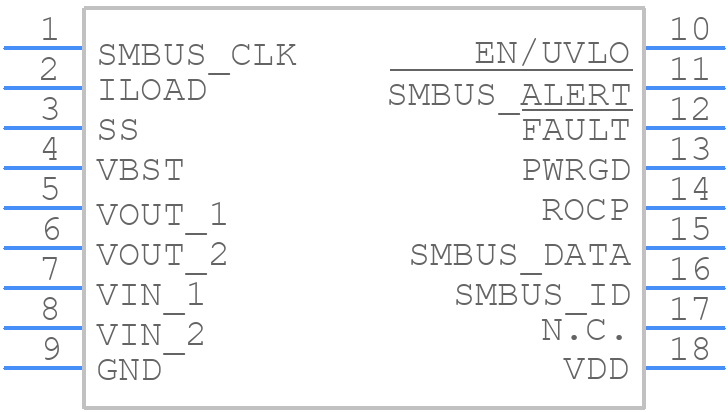

Symbol
MAX16550BGPN+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16550BGPN+ - Analog Devices PCB footprint - Other - Other - P184A4F+1
click to zoom
3D Models
MAX16550BGPN+ - Analog Devices - 3D model - Other - P184A4F+1
click to zoom

MAX16550BGPN+ Details

  • Manufacturer Part Number:

    MAX16550BGPN+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    18-LFCSP-4X4.5X0.95

  • Pin Count:

    18

  • Manufacturer Package Code:

    18-LFCSP-4X4.5X0.95

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-03-31

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-XXSS-N18

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XSS

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SPECIAL SHAPE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    UNSPECIFIED

  • Threshold Voltage-Nom:

    +1V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX16550BGPN+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX16550BGPN+ can be found in the MAX16550 Evaluation Kit documentation, which provides a detailed layout guide and PCB design files. Additionally, Analog Devices provides a layout checklist in the datasheet that highlights key considerations for signal integrity, power supply decoupling, and thermal management.
  • The MAX16550BGPN+ is a highly configurable device, and configuration depends on the specific application requirements. Engineers can use the MAX16550 Evaluation Kit software to configure the device and generate a configuration file. Additionally, Analog Devices provides application notes and design guides that provide configuration examples for common use cases.
  • The MAX16550BGPN+ can operate at data rates up to 1.5 Gbps, but the actual achievable data rate depends on the specific application, PCB layout, and signal integrity. Engineers should consult the datasheet and application notes for guidance on achieving the highest possible data rates.
  • Analog Devices provides a troubleshooting guide in the datasheet that covers common issues and their solutions. Additionally, engineers can use the MAX16550 Evaluation Kit software to debug and diagnose issues with the device. It's also recommended to consult the application notes and design guides for specific troubleshooting guidance.
  • The power consumption of the MAX16550BGPN+ depends on the specific configuration, data rate, and operating conditions. The datasheet provides typical power consumption values, but engineers should consult the device's power consumption calculator tool or contact Analog Devices support for more accurate estimates.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX16550BGPN+ Overview

Use the download button to access the MAX16550BGPN+ schematic symbol, PCB footprint, and 3D model.
