MAX1668MEE+ - Analog Devices

Description: Board Mount Temperature Sensors MultiCh Remote Local

Download MAX1668MEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

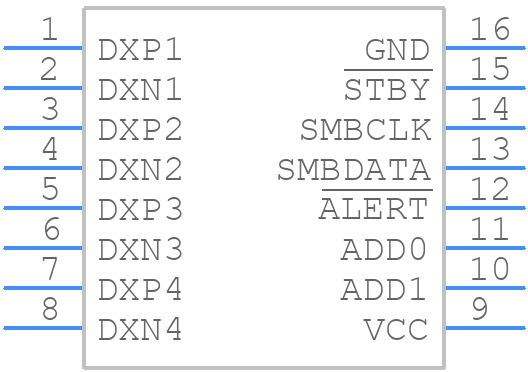

Symbol
MAX1668MEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1668MEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 21-0055_O
click to zoom
3D Models
MAX1668MEE+ - Analog Devices - 3D model - Small Outline Packages - MAX 21-0055_O
click to zoom

MAX1668MEE+ Details

  • Manufacturer Part Number:

    MAX1668MEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    0.150 INCH, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-07-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.72 mm

  • Body Length or Diameter:

    4.89 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    8

  • Number of Terminals:

    16

  • Operating Current-Max:

    0.01 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Termination Type:

    SOLDER

MAX1668MEE+ Frequently Asked Questions (FAQs)

  • The MAX1668MEE+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce noise and improve thermal performance.
  • The MAX1668MEE+ has a built-in thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. To handle this feature, ensure that the device is properly heatsinked, and consider adding thermal monitoring and shutdown circuitry to prevent damage to the device and surrounding components.
  • The recommended input capacitor value and type for the MAX1668MEE+ depends on the specific application and input voltage. A general guideline is to use a low-ESR ceramic capacitor with a value between 1uF to 10uF, and a voltage rating that exceeds the maximum input voltage.
  • To ensure stability and prevent oscillation, follow the recommended layout and placement guidelines, use a sufficient input capacitor, and ensure that the output capacitor is properly sized and placed. Additionally, consider adding a small resistor in series with the output capacitor to dampen any oscillations.
  • The maximum output current capability of the MAX1668MEE+ is 1.5A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal performance of the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1668MEE+ Overview

Use the download button to access the MAX1668MEE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX16, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
