MAX16710AWA+T - Analog Devices

Description: Switching Voltage Regulators 10A 2Mhz 2.7V to 16V Step Down Switching

Download MAX16710AWA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

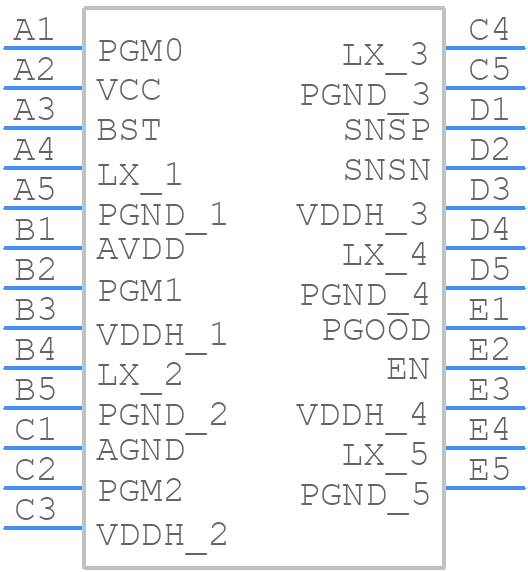

Symbol
MAX16710AWA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16710AWA+T - Analog Devices PCB footprint - BGA - BGA - W252W2Z+1
click to zoom

MAX16710AWA+T Details

  • Manufacturer Part Number:

    MAX16710AWA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    25-WLCSP-N/A

  • Package Description:

    WLP-25

  • Pin Count:

    25

  • Manufacturer Package Code:

    25-WLCSP-N/A

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2023-04-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XBGA-B12

  • Length:

    2.928 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.8 V

  • Output Voltage-Min:

    0.5 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFLGA

  • Package Equivalence Code:

    BGA12,5X5,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1500 kHz

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.518 mm

MAX16710AWA+T Frequently Asked Questions (FAQs)

  • The MAX16710AWA+T requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing the decoupling capacitors close to the device.
  • The selection of input and output capacitors for the MAX16710AWA+T depends on the specific application requirements. In general, it is recommended to use low-ESR capacitors with a value of 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor. The datasheet provides more detailed guidance on capacitor selection.
  • The MAX16710AWA+T is rated for operation over a temperature range of -40°C to +125°C. However, the device may not meet its specified performance over the entire temperature range, and derating may be necessary for high-temperature operation.
  • Troubleshooting issues with the MAX16710AWA+T requires a systematic approach. First, verify that the device is properly powered and that the input voltage is within the specified range. Check the layout and placement of the device and ensure that it is properly decoupled. Use an oscilloscope to measure the output voltage and check for noise or oscillations. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The MAX16710AWA+T is a high-reliability device that meets the requirements of the automotive industry. It is AEC-Q100 qualified and meets the requirements of ISO 26262 for functional safety. However, it is essential to follow the recommended design and layout guidelines and to perform thorough testing and validation to ensure that the device meets the specific requirements of the application.
