MAX16812ATI/V+ - Analog Devices

Description: Integrated High-Voltage LED Driver with Analog and PWM Dimming Control

Download MAX16812ATI/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

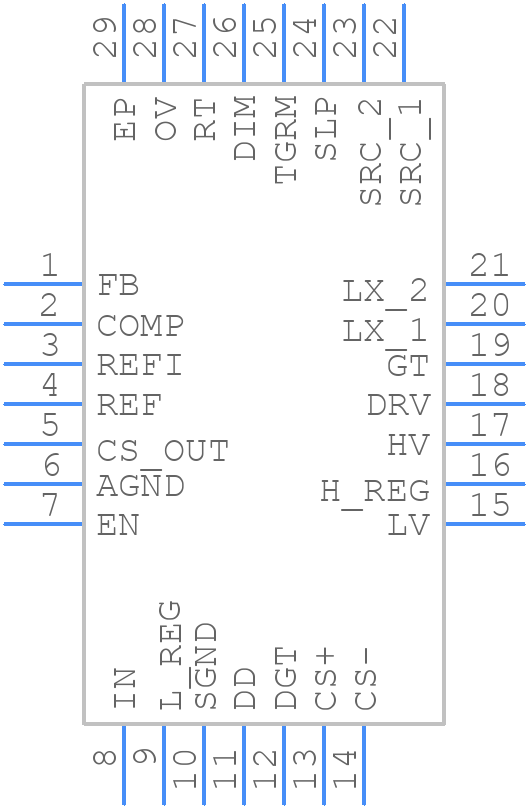

MAX16812ATI/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16812ATI/V+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28 TQFN-Ep
click to zoom
3D Models
MAX16812ATI/V+ - Analog Devices - 3D model - Quad Flat No-Lead - 28 TQFN-Ep
click to zoom

MAX16812ATI/V+ Details

  • Manufacturer Part Number:

    MAX16812ATI/V+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Interface IC Type:

    LED DISPLAY DRIVER

  • Moisture Sensitivity Level:

    1

  • Screening Level:

    AEC-Q100

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX16812ATI/V+ Overview

Use the download button to access the MAX16812ATI/V+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX16, or try a keyword search, such as Display Drivers
