MAX16814BEUP+ - Analog Devices

Description: Integrated, 4-Channel, High-Brightness LED Driver with High-Voltage DC-DC Controller

Download MAX16814BEUP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

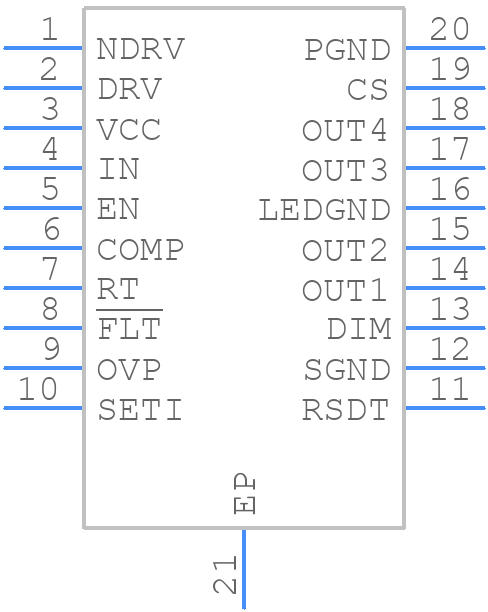

Symbol
MAX16814BEUP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16814BEUP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U20E+1
click to zoom
3D Models
MAX16814BEUP+ - Analog Devices - 3D model - Small Outline Packages - U20E+1
click to zoom

MAX16814BEUP+ Details

  • Manufacturer Part Number:

    MAX16814BEUP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-TSSOP_4.4_EP-4.4_MM

  • Package Description:

    6.50 X 4.40 MM, ROHS COMPLIANT, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-TSSOP_4.4_EP-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2009-08-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX16814BEUP+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16814BEUP+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be decoupled from the power supply with a 10uF capacitor. If oscillations occur, try adding a small resistor (1-10 ohms) in series with the output capacitor.
  • The MAX16814BEUP+ can handle input voltages up to 40V, but it's recommended to keep the input voltage below 36V to ensure reliable operation and to prevent damage to the device.
  • The MAX16814BEUP+ is rated for operation up to 125°C, but it's essential to ensure that the device is properly heatsinked and that the junction temperature is kept below 150°C. Also, the device's performance may degrade at high temperatures, so it's recommended to consult the datasheet and application notes for more information.
  • To troubleshoot issues with the MAX16814BEUP+, start by checking the input and output voltages, and ensure that the device is properly powered. Check for any signs of overheating, and verify that the device is properly heatsinked. Use an oscilloscope to check for oscillations or other anomalies. If the issue persists, consult the datasheet and application notes, and contact Analog Devices' support team if necessary.
