MAX16815ASA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX16815ASA+ - LED Driver, Linear, 1 Output, PWM Dimming, 6.5 V to 40 V Input, 38.6 V/100 mA Out, NSOIC-8

Download MAX16815ASA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

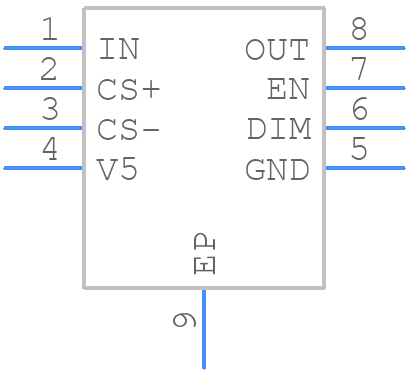

MAX16815ASA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16815ASA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8E+12
click to zoom
3D Models
MAX16815ASA+ - Analog Devices - 3D model - Small Outline Packages - S8E+12
click to zoom

MAX16815ASA+ Details

  • Manufacturer Part Number:

    MAX16815ASA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-02-13

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.68 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    6.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX16815ASA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16815ASA+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input capacitors close to the device. Additionally, it's recommended to use a 4-layer board with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input capacitors for the MAX16815ASA+ should be chosen based on the input voltage range, ripple current, and ESR requirements. A good starting point is to use 10uF to 22uF ceramic capacitors with an X7R or X5R dielectric and a voltage rating of at least 2x the maximum input voltage. The ESR should be less than 100mΩ.
  • The maximum output current of the MAX16815ASA+ is 1.5A. However, the output current should be derated based on the ambient temperature and the input voltage to ensure reliable operation.
  • The MAX16815ASA+ has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider that sets the OVP threshold. The OVP threshold should be set to a voltage slightly higher than the maximum input voltage to prevent false triggering.
  • The MAX16815ASA+ is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and input voltage based on the ambient temperature to ensure reliable operation.
