MAX16826ATJ+ - Analog Devices

Description: Programmable, Four-String HB LED Driver with Output-Voltage Optimization and Fault Detection

Download MAX16826ATJ+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

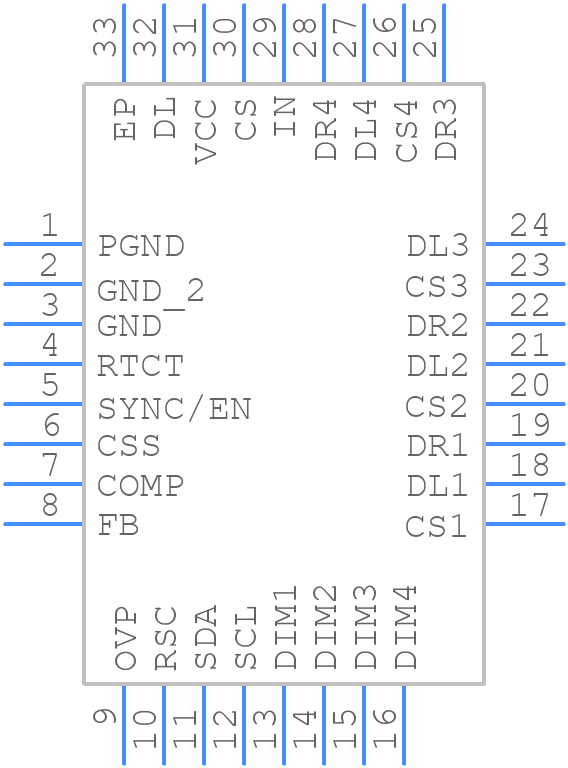

MAX16826ATJ+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16826ATJ+ - Analog Devices PCB footprint - Other - Other - QFN50P500X500X80-33N
click to zoom
3D Models
MAX16826ATJ+ - Analog Devices - 3D model - Other - QFN50P500X500X80-33N
click to zoom

MAX16826ATJ+ Details

  • Manufacturer Part Number:

    MAX16826ATJ+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Package Description:

    TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-08-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    24 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • fmax-Min:

    0.4 MHz

MAX16826ATJ+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX16826ATJ+ can be found in the MAX16826 Evaluation Kit documentation, which provides a detailed layout guide and Gerber files for reference. Additionally, Analog Devices provides a PCB layout checklist in the datasheet that highlights key considerations for optimal performance.
  • To optimize the MAX16826ATJ+ for low-power operation, ensure that the device is operated in the low-power mode (LP mode) by setting the LP pin high. Additionally, minimize the switching frequency, use a low-value sense resistor, and optimize the output capacitor selection to reduce power losses. Refer to the datasheet for more details on power-saving techniques.
  • The maximum allowed voltage on the VCC pin of the MAX16826ATJ+ is 5.5V. Exceeding this voltage may damage the device. It is recommended to use a voltage regulator or a voltage clamp to ensure that the VCC pin voltage remains within the specified range.
  • To troubleshoot issues with the MAX16826ATJ+, start by verifying the power supply voltage, sense resistor value, and output capacitor selection. Check for proper PCB layout and routing, and ensure that the device is operated within the specified temperature range. Use an oscilloscope to monitor the output voltage and current waveforms, and refer to the datasheet for troubleshooting guidelines and application notes.
  • The MAX16826ATJ+ is specified to operate up to 125°C (TJ). However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's output current and voltage ratings at high temperatures, and to ensure proper thermal management and heat sinking to prevent overheating.
