MAX16826ATJ+T - Analog Devices

Description: Programmable, Four-String HB LED Driver with Output-Voltage Optimization and Fault Detection

Download MAX16826ATJ+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

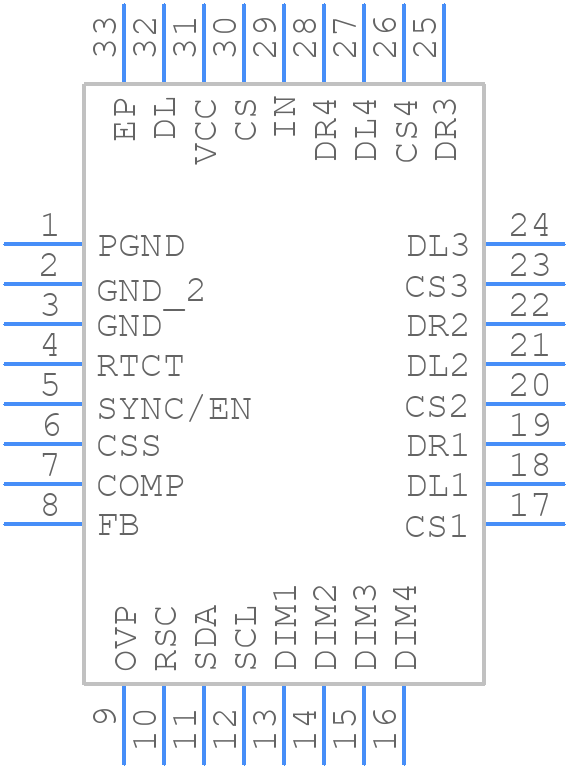

MAX16826ATJ+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16826ATJ+T - Analog Devices PCB footprint - Other - Other - QFN50P500X500X80-33N
click to zoom
3D Models
MAX16826ATJ+T - Analog Devices - 3D model - Other - QFN50P500X500X80-33N
click to zoom

MAX16826ATJ+T Details

  • Manufacturer Part Number:

    MAX16826ATJ+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-08-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LIQUID CRYSTAL DISPLAY DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX16826ATJ+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16826ATJ+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The input capacitor selection depends on the input voltage, output voltage, and the desired output ripple. A general rule of thumb is to choose a capacitor with a capacitance value between 1uF to 10uF, and a voltage rating that is at least 1.5 times the maximum input voltage. The capacitor should also have a low ESR (Equivalent Series Resistance) to minimize losses.
  • The MAX16826ATJ+T can operate in an ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at higher temperatures. It's essential to ensure that the device is operated within the recommended temperature range to ensure optimal performance and reliability.
  • Yes, the MAX16826ATJ+T is suitable for high-reliability applications. It's built with high-reliability materials and manufacturing processes, and it's qualified to various industry standards such as AEC-Q100. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure that the device meets the specific requirements of the application.
  • Troubleshooting issues with the MAX16826ATJ+T involves identifying the symptoms, checking the power supply, input and output voltages, and the device's operating conditions. It's also essential to check the PCB layout, component values, and the device's configuration. Analog Devices provides a range of resources, including application notes, FAQs, and technical support, to help troubleshoot and resolve issues with the device.
