MAX16826ATJ/V+ - Analog Devices

Description: LED Lighting Drivers Programmable, Four-String HB LED Driver with Output-Voltage Optimization and Fault Detection

Download MAX16826ATJ/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

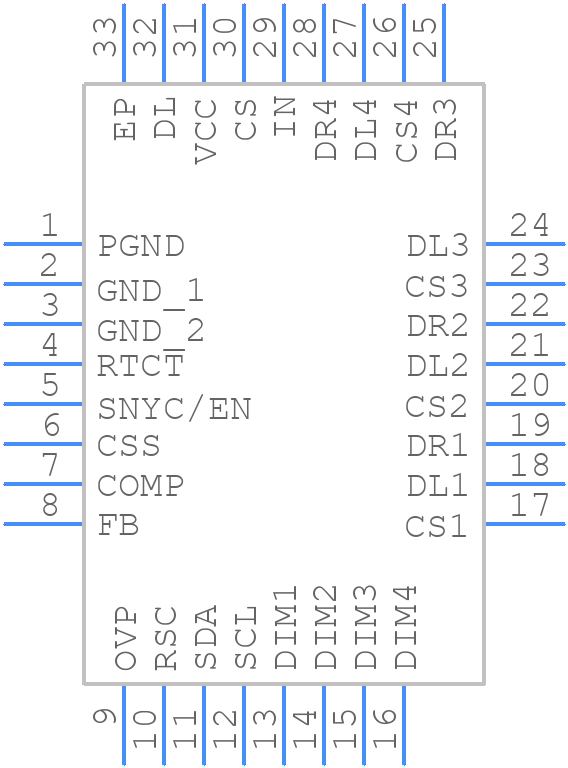

Symbol
MAX16826ATJ/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16826ATJ/V+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T3255+4
click to zoom
3D Models
MAX16826ATJ/V+ - Analog Devices - 3D model - Quad Flat No-Lead - T3255+4
click to zoom

MAX16826ATJ/V+ Details

  • Manufacturer Part Number:

    MAX16826ATJ/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Package Description:

    TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-08-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    24 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • fmax-Min:

    0.4 MHz

MAX16826ATJ/V+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX16826ATJ/V+ is to keep the input and output traces as short as possible, and to use a solid ground plane to reduce noise and EMI. Additionally, it's recommended to place the input capacitors close to the device and to use a common ground point for the input and output returns.
  • To optimize the performance of the MAX16826ATJ/V+, it's recommended to carefully select the input and output capacitors, and to adjust the feedback resistors to achieve the desired output voltage and stability. Additionally, it's important to ensure that the device is operated within its recommended operating conditions and to provide adequate thermal management.
  • The maximum input voltage that the MAX16826ATJ/V+ can handle is 42V, but it's recommended to operate the device within its recommended input voltage range of 4.5V to 36V to ensure reliable operation and to prevent damage to the device.
  • The MAX16826ATJ/V+ is rated for operation up to 125°C, but it's recommended to derate the device's performance and to ensure adequate thermal management to prevent overheating and damage to the device.
  • To troubleshoot issues with the MAX16826ATJ/V+, it's recommended to check the input and output voltages, the feedback resistors, and the capacitors to ensure that they are properly connected and functioning correctly. Additionally, it's recommended to check the device's thermal management and to ensure that it is operated within its recommended operating conditions.
