MAX16832AASA+T - Analog Devices

Description: LED Lighting Drivers 2MHz, High-Brightness LED Drivers with Integrated MOSFET and High-Side Current Sense

Download MAX16832AASA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

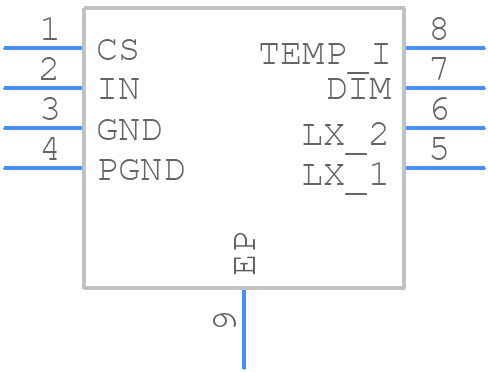

MAX16832AASA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16832AASA+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SO-EP
click to zoom
3D Models
MAX16832AASA+T - Analog Devices - 3D model - Small Outline Packages - SO-EP
click to zoom

MAX16832AASA+T Details

  • Manufacturer Part Number:

    MAX16832AASA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    ROHS COMPLIANT, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-06-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.68 mm

  • Supply Current-Max:

    0.35 mA

  • Supply Voltage-Max:

    65 V

  • Supply Voltage-Min:

    6.5 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX16832AASA+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16832AASA+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The input capacitor selection depends on the input voltage, output voltage, and the desired ripple voltage. A general rule of thumb is to choose a capacitor with a capacitance value between 1uF to 10uF, with a voltage rating at least 1.5 times the maximum input voltage. X5R or X7R ceramic capacitors are recommended due to their low ESR and high reliability.
  • The MAX16832AASA+T has an operating temperature range of -40°C to +125°C. However, the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature does not exceed 150°C to maintain reliability and performance.
  • Yes, the MAX16832AASA+T is suitable for high-reliability and automotive applications due to its high reliability, low dropout voltage, and high output current capability. However, it's essential to follow the recommended design guidelines, testing, and validation procedures to ensure the device meets the specific application requirements.
  • To troubleshoot common issues with the MAX16832AASA+T, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for troubleshooting guidelines.
