MAX16910CASA9/V+T - Analog Devices

Description: 200mA, Automotive, Ultra-Low Quiescent Current, Linear Regulator -40°C to +125°C 8 SO-EP* (5mm x 4mm)

Download MAX16910CASA9/V+T Model

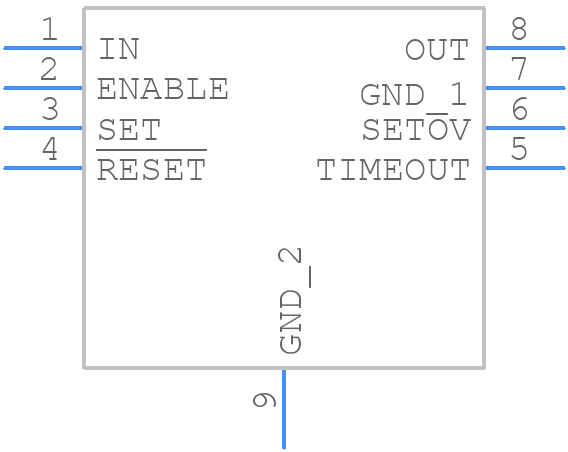

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX16910CASA9/V+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8 SO-EP
click to zoom
3D Models
MAX16910CASA9/V+T - Analog Devices  - 3D model - Small Outline Packages - 8 SO-EP
click to zoom

MAX16910CASA9/V+T Details

  • Manufacturer Part Number:

    MAX16910CASA9/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-SOIC_N-150_MIL

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-SOIC_N-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2009-08-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.6 V

  • Dropout Voltage1-Nom:

    0.28 V

  • Input Voltage Absolute-Max:

    45 V

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    6 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.89 mm

  • Line Regulation-Max:

    0.001%

  • Load Regulation-Max:

    0.012%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    5.1 V

  • Output Voltage1-Min:

    4.9 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.68 mm

  • Surface Mount:

    YES

  • Technology:

    BCDMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    3.9 mm

MAX16910CASA9/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16910CASA9/V+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The selection of input and output capacitors for the MAX16910CASA9/V+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output ripple and transient response. A good starting point is to use 10uF capacitors for both input and output.
  • The MAX16910CASA9/V+T has an operating temperature range of -40°C to +125°C. However, the maximum ambient temperature range depends on the specific application and the thermal design of the system. In general, it's recommended to keep the ambient temperature below 85°C to ensure reliable operation.
  • To ensure proper power-up and power-down of the MAX16910CASA9/V+T, it's recommended to follow a controlled power-up sequence. This involves slowly ramping up the input voltage to the device, and then enabling the output voltage. During power-down, the output voltage should be disabled before the input voltage is removed. Additionally, it's recommended to use a soft-start circuit to limit the inrush current during power-up.
  • The recommended input voltage range for the MAX16910CASA9/V+T is 4.5V to 14V. However, the device can operate with input voltages as low as 4V and as high as 15V, but with reduced performance and efficiency.
