MAX16935SATE/V+T - Analog Devices

Description: IC REG BUCK ADJ/5V 3.5A 16TQFN

Download MAX16935SATE/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

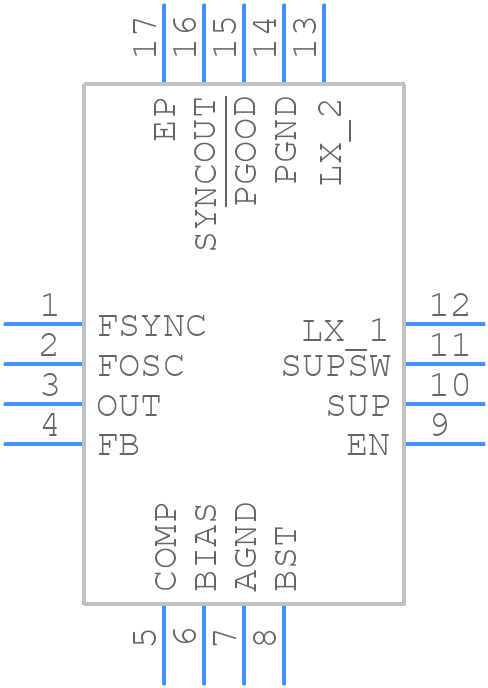

MAX16935SATE/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16935SATE/V+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1655+4
click to zoom
3D Models
MAX16935SATE/V+T - Analog Devices - 3D model - Quad Flat No-Lead - T1655+4
click to zoom

MAX16935SATE/V+T Details

  • Manufacturer Part Number:

    MAX16935SATE/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-5X5X0.75

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2013-12-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Output Voltage-Max:

    10 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC16,.20SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX16935SATE/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16935SATE/V+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The selection of input and output capacitors for the MAX16935SATE/V+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output ripple and transient response. A good starting point is to use 10uF capacitors for both input and output.
  • The MAX16935SATE/V+T is rated for operation from -40°C to +125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to derate the device's performance and ensure proper thermal management to ensure reliable operation.
  • Yes, the MAX16935SATE/V+T is suitable for high-reliability and automotive applications. The device is built with high-reliability materials and manufacturing processes, and it meets the requirements of various automotive standards such as AEC-Q100. However, it's recommended to consult with Analog Devices Inc. for specific requirements and qualifications.
  • To troubleshoot common issues with the MAX16935SATE/V+T, start by checking the input voltage, output load, and PCB layout. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the PCB layout is correct. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes, or contact Analog Devices Inc. for further assistance.
