MAX16946GTE/V+ - Analog Devices

Description: Remote Antenna, Current-Sense and LDO/Switches

Download MAX16946GTE/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

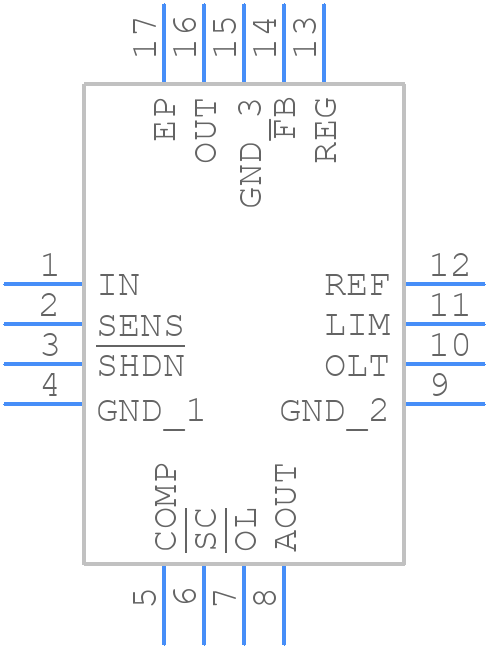

MAX16946GTE/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16946GTE/V+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16TQFN
click to zoom
3D Models
MAX16946GTE/V+ - Analog Devices - 3D model - Quad Flat No-Lead - 16TQFN
click to zoom

MAX16946GTE/V+ Details

  • Manufacturer Part Number:

    MAX16946GTE/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-4X4X0.75

  • Package Description:

    ROHS COMPLIANT, TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2010-12-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    2.6 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX16946GTE/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16946GTE/V+ involves keeping the input and output traces separate, using a solid ground plane, and placing the input capacitors close to the device. A 4-layer PCB with a dedicated power plane is recommended. Refer to the MAX16946 evaluation kit for a reference design.
  • To optimize the performance of the MAX16946GTE/V+, ensure that the input voltage is within the recommended range, use the correct output capacitor value, and minimize the output voltage ripple. Also, consider the operating temperature range and adjust the device's compensation accordingly. Consult the application note AN-2153 for more information.
  • The maximum output current of the MAX16946GTE/V+ is 3A. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations. Refer to the datasheet for the output current vs. input voltage and output voltage graphs.
  • To troubleshoot issues with the MAX16946GTE/V+, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to measure the output voltage ripple and input voltage noise. Consult the datasheet and application notes for troubleshooting guidelines.
  • The MAX16946GTE/V+ is a general-purpose DC-DC converter and can be used with a wide range of microcontrollers and processors. However, ensure that the output voltage and current meet the requirements of your specific microcontroller or processor. Consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX16946GTE/V+ Overview

Use the download button to access the MAX16946GTE/V+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX16, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
