MAX16956AUBF/V+ - Analog Devices

Description: Voltage Regulators - Switching Regulators 36V, 300mA, Mini Buck Converter with 2uA Iq

Download MAX16956AUBF/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

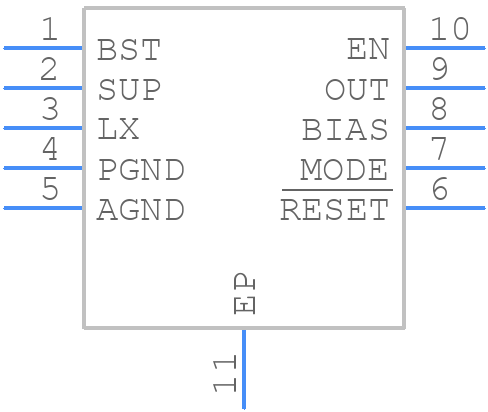

Symbol
MAX16956AUBF/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16956AUBF/V+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - Max 21-0109_G
click to zoom
3D Models
MAX16956AUBF/V+ - Analog Devices - 3D model - Small Outline Packages - Max 21-0109_G
click to zoom

MAX16956AUBF/V+ Details

  • Manufacturer Part Number:

    MAX16956AUBF/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO_EP-N/A

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO_EP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2013-09-11

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ADJUSTABLE VOLTAGE FROM 1V TO 10V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.575 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2250 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX16956AUBF/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16956AUBF/V+ involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input and output capacitors should be selected based on the specific application requirements. For the input capacitor, a low-ESR ceramic capacitor with a value between 1uF to 10uF is recommended. For the output capacitor, a low-ESR ceramic capacitor with a value between 10uF to 22uF is recommended. The capacitor values and types may need to be adjusted based on the specific output voltage and current requirements.
  • The MAX16956AUBF/V+ has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • The MAX16956AUBF/V+ has a specific power-up and power-down sequence that must be followed to ensure proper operation. The device should be powered up by applying the input voltage (VIN) before the enable signal (EN). During power-down, the enable signal should be turned off before removing the input voltage. Additionally, the device should be powered up and powered down slowly to prevent voltage spikes and noise.
  • The recommended input voltage range for the MAX16956AUBF/V+ is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability. Additionally, the input voltage should be well-regulated and free of noise to ensure optimal performance.
