MAX16990ATCE/V+T footprint, schematic symbol and 3D model by Analog Devices

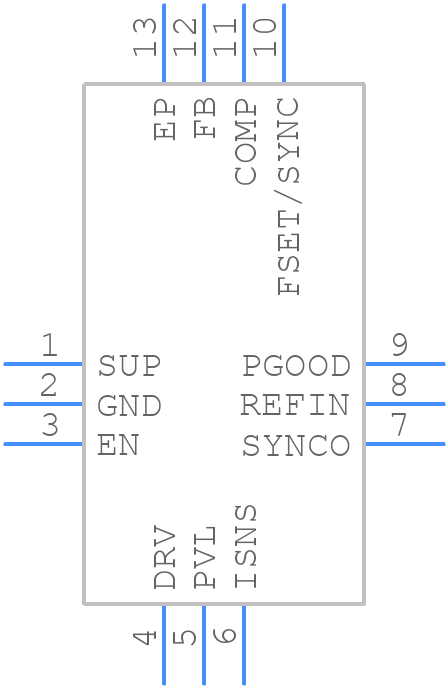

Symbol

click to zoom

PCB Footprints

MAX16990ATCE/V+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1233+4

click to zoom

3D Models

MAX16990ATCE/V+T - Analog Devices - 3D model - Quad Flat No-Lead - T1233+4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX16990ATCE/V+T
Part Number MAX16990ATCE/V+T
Manufacturer Analog Devices
Pin Count 13
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - T1233+4
Released Date Oct 19, 2020
Last Modified Date Jan 14, 2026 3:43 PM UTC
Pinout / Pin List Click Here (Member Only)

MAX16990ATCE/V+T Details

Manufacturer Part Number:
MAX16990ATCE/V+T
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
12-LFCSP-3X3X0.75
Package Description:
TQFN-12
Pin Count:
12
Manufacturer Package Code:
12-LFCSP-3X3X0.75
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2013-04-02
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog IC - Other Type:
SWITCHING CONTROLLER
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
36 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
14 V
JESD-30 Code:
S-PQCC-N16
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
QCCN
Package Equivalence Code:
LCC16,.12SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
0.8 mm
Supply Current-Max (Isup):
1.3 mA
Surface Mount:
YES
Switcher Configuration:
BOOST
Switching Frequency-Max:
1000 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

MAX16990ATCE/V+T Frequently Asked Questions (FAQs)

A good PCB layout for the MAX16990ATCE/V+T involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The selection of input and output capacitors for the MAX16990ATCE/V+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended for the input and output capacitors. The capacitance value should be chosen based on the desired output voltage ripple and the input voltage range.
The MAX16990ATCE/V+T can operate at ambient temperatures up to 125°C. However, the device's performance and reliability may be affected at high temperatures, and it's recommended to derate the output current and voltage accordingly.
Yes, the MAX16990ATCE/V+T is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a robust process that ensures high reliability and low defect rates.
To troubleshoot issues with the MAX16990ATCE/V+T, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and meet the recommended specifications. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for oscillations or noise on the output voltage. If the issue persists, consult the datasheet and application notes for further guidance.
