MAX16990AUBB/V+ - Analog Devices

Description: 36V, 2.5MHz Automotive Boost/SEPIC Controllers

Download MAX16990AUBB/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

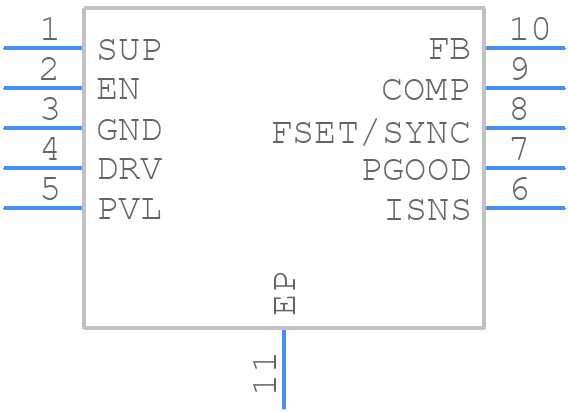

MAX16990AUBB/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX16990AUBB/V+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - U10E+3
click to zoom
3D Models
MAX16990AUBB/V+ - Analog Devices - 3D model - Small Outline Packages - U10E+3
click to zoom

MAX16990AUBB/V+ Details

  • Manufacturer Part Number:

    MAX16990AUBB/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO_EP-N/A

  • Package Description:

    UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO_EP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2013-04-02

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX16990AUBB/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX16990AUBB/V+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise coupling.
  • The input and output capacitors should be selected based on the specific application requirements, such as the input voltage range, output current, and desired ripple voltage. A general rule of thumb is to use low-ESR capacitors with a capacitance value of 10uF to 22uF for the input and output. The datasheet provides more detailed guidance on capacitor selection.
  • The MAX16990AUBB/V+ is rated for operation over a temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • The MAX16990AUBB/V+ has a specific power-up and power-down sequence that must be followed to ensure proper operation. The device should be powered up by applying the input voltage first, followed by the enable signal. When powering down, the enable signal should be turned off first, followed by the input voltage. The datasheet provides more detailed information on the power-up and power-down sequence.
  • The typical efficiency of the MAX16990AUBB/V+ is around 95% to 98% depending on the input voltage, output current, and operating frequency. The datasheet provides more detailed information on the device's efficiency under various operating conditions.
