MAX17030GTL+ - Analog Devices

Description: 1/2/3-Phase Quick-PWM IMVP-6.5 VID Controllers

Download MAX17030GTL+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

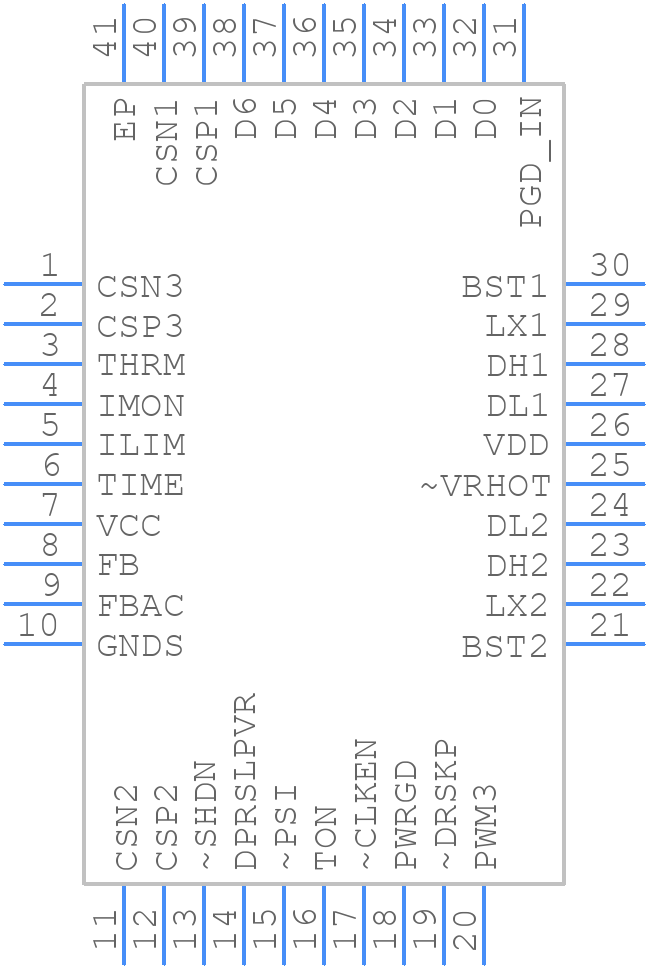

MAX17030GTL+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17030GTL+ - Analog Devices PCB footprint - Other - Other - QFN40P500X500X80-41N
click to zoom
3D Models
MAX17030GTL+ - Analog Devices - 3D model - Other - QFN40P500X500X80-41N
click to zoom

MAX17030GTL+ Details

  • Manufacturer Part Number:

    MAX17030GTL+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    40-LFCSP-5X5X0.75

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, TQFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    40-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2009-05-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO HAS PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    26 V

  • Input Voltage-Min:

    7 V

  • Input Voltage-Nom:

    10 V

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PHASE-SHIFT

  • Switching Frequency-Max:

    600 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX17030GTL+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17030GTL+ involves keeping the device close to the battery, using a solid ground plane, and minimizing the length of the battery voltage and current sense lines. Additionally, it's recommended to place the device on the same PCB layer as the battery and to use a 4-layer PCB with a dedicated power plane and ground plane.
  • Calibration of the MAX17030GTL+ involves setting the device's internal registers to match the specific battery characteristics. This can be done using the device's built-in calibration commands or through the use of an external microcontroller. The calibration process typically involves measuring the battery's open-circuit voltage, internal resistance, and capacity, and then programming these values into the device.
  • Temperature can affect the accuracy of the MAX17030GTL+ fuel gauge. The device has an internal temperature sensor that can be used to compensate for temperature-related errors. However, it's still important to consider the operating temperature range of the device and the battery when designing the system. The datasheet provides temperature-related error specifications that can be used to estimate the impact of temperature on accuracy.
  • Yes, the MAX17030GTL+ can be used with multiple battery chemistries, including lithium-ion, lithium-polymer, and lead-acid batteries. However, the device's internal settings and calibration values may need to be adjusted depending on the specific battery chemistry being used. The datasheet provides guidelines for configuring the device for different battery chemistries.
  • The MAX17030GTL+ has built-in features to handle battery aging and capacity loss, including a learning mechanism that adapts to changes in the battery's capacity over time. The device can also be configured to provide alerts and warnings when the battery's capacity falls below a certain threshold. Additionally, the device's internal registers can be used to track and store battery health information.
