MAX17040G+T - Analog Devices

Description: Battery Management Compact, Low-Cost 1S/2S Fuel Gauges

Download MAX17040G+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

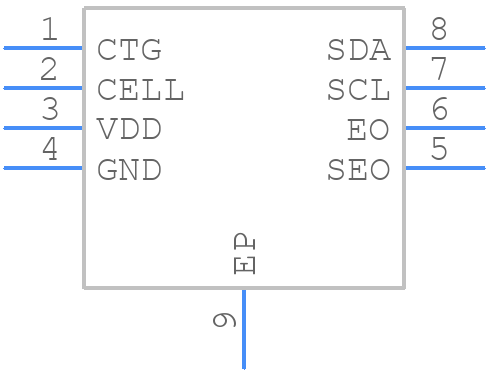

MAX17040G+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17040G+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T823+1
click to zoom
3D Models
MAX17040G+T - Analog Devices - 3D model - Small Outline No-lead - T823+1
click to zoom

MAX17040G+T Details

  • Manufacturer Part Number:

    MAX17040G+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X3X0.75

  • Package Description:

    2 X 3 MM, ROHS COMPLIANT, TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2010-05-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.075 mA

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX17040G+T Frequently Asked Questions (FAQs)

  • The MAX17040G+T requires careful layout and placement to ensure accurate fuel gauge measurements. It is recommended to place the device close to the battery, use a solid ground plane, and keep the sense lines short and away from noise sources. Refer to the application note AN5149 for more details.
  • The MAX17040G+T requires calibration for the specific battery chemistry used in the application. This involves measuring the battery's capacity, internal resistance, and other parameters. Refer to the application note AN5149 for a step-by-step calibration procedure.
  • The MAX17040G+T's SOC measurement accuracy is typically ±5% over the entire operating range, but this can vary depending on the specific battery chemistry, calibration, and operating conditions. Refer to the datasheet for more information on accuracy specifications.
  • Yes, the MAX17040G+T can be used with multiple battery cells, but it requires additional circuitry and calibration. Refer to the application note AN5149 for more information on using the MAX17040G+T with multiple battery cells.
  • The MAX17040G+T's POR and BOR functions ensure that the device resets properly during power-up and brown-out conditions. It is recommended to use an external capacitor to filter the power supply and ensure a clean reset. Refer to the datasheet for more information on POR and BOR timing specifications.
