MAX17043G+T - Analog Devices

Description: Compact, Low-Cost 1S/2S Fuel Gauges with Low-Battery Alert

Download MAX17043G+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

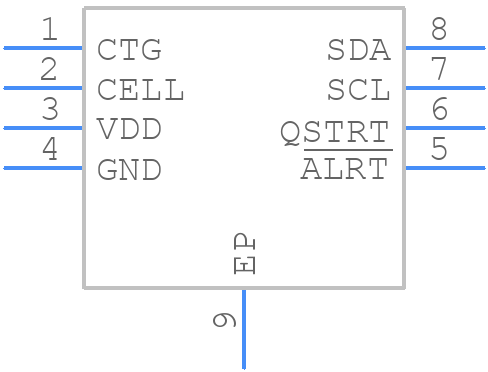

MAX17043G+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17043G+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8L-TDFN - 21-0174
click to zoom
3D Models
MAX17043G+T - Analog Devices - 3D model - Small Outline No-lead - 8L-TDFN - 21-0174
click to zoom

MAX17043G+T Details

  • Manufacturer Part Number:

    MAX17043G+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X3X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2010-05-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX17043G+T Frequently Asked Questions (FAQs)

  • The MAX17043G+T requires careful layout and placement to ensure accurate fuel gauge measurements. It is recommended to place the device close to the battery, use a dedicated ground plane, and keep the sense lines short and away from noise sources. Refer to the application note AN5149 for more details.
  • The MAX17043G+T requires calibration for the specific battery chemistry used in the application. This involves measuring the battery's open-circuit voltage and impedance at different states of charge and temperature. The calibration data is then stored in the device's internal EEPROM. Refer to the application note AN5149 for more details.
  • The MAX17043G+T's SOC measurement accuracy is typically ±5% over the entire operating range, but this can vary depending on the specific battery chemistry, temperature, and aging. It is recommended to characterize the device's performance with the specific battery used in the application.
  • Yes, the MAX17043G+T can be used with multiple battery cells in series or parallel. However, the device's accuracy may be affected by the increased complexity of the battery configuration. It is recommended to consult with Analog Devices' technical support for guidance on implementing the device in such configurations.
  • The MAX17043G+T can track battery aging and capacity loss through its internal algorithms and calibration data. However, the device may require periodic recalibration to maintain accuracy as the battery ages. It is recommended to consult with Analog Devices' technical support for guidance on implementing battery aging compensation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17043G+T Overview

Use the download button to access the MAX17043G+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
