MAX17048G+T10 - Analog Devices

Description: 3µA 1-Cell/2-Cell Fuel Gauge with ModelGauge

Download MAX17048G+T10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

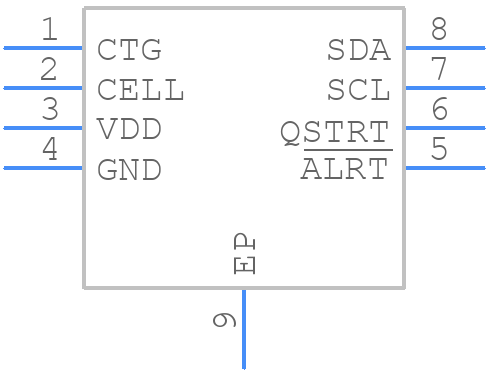

MAX17048G+T10 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17048G+T10 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822+3
click to zoom
3D Models
MAX17048G+T10 - Analog Devices - 3D model - Small Outline No-lead - T822+3
click to zoom

MAX17048G+T10 Details

  • Manufacturer Part Number:

    MAX17048G+T10

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-02-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    RESET THRESHOLD VOLTAGE IS 3 VOLT

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.04 mA

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX17048G+T10 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17048G+T10 involves keeping the device close to the battery, using a solid ground plane, and minimizing the length of the battery voltage and current sense lines. Additionally, it's recommended to place the device on the same side of the PCB as the battery and to use a 4-layer PCB with a solid ground plane to minimize noise and EMI.
  • The MAX17048G+T10 has a built-in calibration feature that allows the user to calibrate the fuel gauge. This can be done by applying a known battery voltage and current, and then using the device's calibration registers to adjust the fuel gauge readings. The calibration process typically involves setting the device's internal registers to match the battery's characteristics, such as its capacity and chemistry.
  • The accuracy of the fuel gauge readings depends on various factors, including the quality of the battery, the accuracy of the calibration, and the operating conditions. According to the datasheet, the MAX17048G+T10 has a typical accuracy of ±1% for the fuel gauge readings, but this can vary depending on the specific application and operating conditions.
  • The MAX17048G+T10 has a built-in POR and POB feature that resets the device when the power supply voltage falls below a certain threshold. To handle these features, the user should ensure that the power supply voltage is stable and within the recommended operating range, and that the device is properly reset after a power-on event. Additionally, the user should ensure that the device's POR and POB thresholds are set correctly to avoid unwanted resets.
  • Yes, the MAX17048G+T10 can be used with multiple battery chemistries, including lithium-ion, nickel-cadmium, and lead-acid batteries. However, the user must ensure that the device is properly calibrated for each battery chemistry, and that the device's internal registers are set correctly to match the battery's characteristics.
