MAX17049G+T10 - Analog Devices

Description: Battery Management Host-Side Modelgauge (2-Cell)

Download MAX17049G+T10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

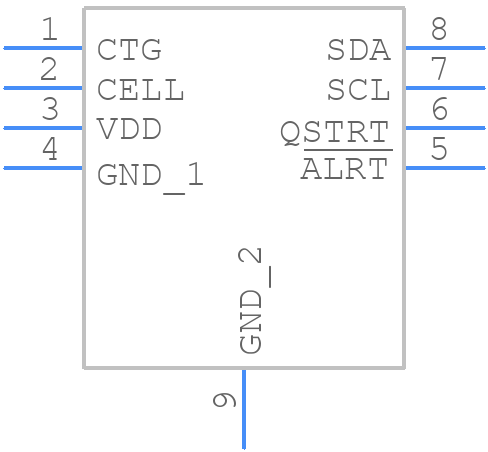

MAX17049G+T10 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17049G+T10 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TDFN+EP[T822-3] (21-0168)
click to zoom
3D Models
MAX17049G+T10 - Analog Devices - 3D model - Small Outline No-lead - TDFN+EP[T822-3] (21-0168)
click to zoom

MAX17049G+T10 Details

  • Manufacturer Part Number:

    MAX17049G+T10

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-02-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PDSO-N8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

MAX17049G+T10 Frequently Asked Questions (FAQs)

  • The MAX17049G+T is a fuel gauge IC designed for battery-powered systems, typically used in portable devices such as smartphones, laptops, and tablets to monitor battery state of charge, voltage, and current.
  • The MAX17049G+T uses a patented algorithm called ModelGauge to estimate the battery state of charge based on measurements of battery voltage, current, and temperature. This algorithm takes into account the battery's internal impedance, self-discharge rate, and other factors to provide an accurate estimate of the battery's state of charge.
  • The MAX17049G+T's state of charge measurement accuracy is typically within ±5% over the entire battery capacity range, making it suitable for most battery-powered applications.
  • Yes, the MAX17049G+T is designed to work with various battery chemistries, including lithium-ion, lithium-polymer, and nickel-metal hydride batteries, among others.
  • The MAX17049G+T has a built-in calibration mechanism that allows the device to learn the battery's characteristics during the initial charging cycle. This calibration data is then used to improve the accuracy of the state of charge measurement over time.
