MAX17055ETB+T - Analog Devices

Description: Battery Management Stand-Alone Model Gauge m5 Fuel Gauge

Download MAX17055ETB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

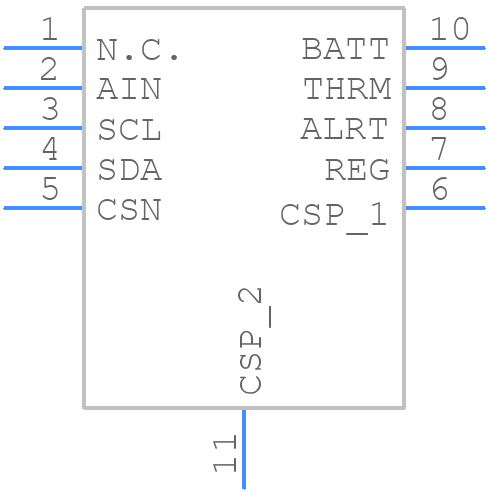

Symbol
MAX17055ETB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17055ETB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-LFCSP-2.5X2X0.75-1
click to zoom
3D Models
MAX17055ETB+T - Analog Devices - 3D model - Small Outline No-lead - 10-LFCSP-2.5X2X0.75-1
click to zoom

MAX17055ETB+T Details

  • Manufacturer Part Number:

    MAX17055ETB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-2.5X2X0.75

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-2.5X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-03-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    4.9 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX17055ETB+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17055ETB+T can be found in the MAX17055 Evaluation Kit User Guide (UG-1137) and the MAX17055 Layout Guidelines application note (AN-1138). These resources provide detailed guidance on PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • Calibration of the MAX17055ETB+T involves adjusting the device's internal registers to match the specific battery chemistry and capacity. The calibration process is described in the MAX17055 datasheet and the MAX17055 Fuel Gauge Calibration application note (AN-1139). Calibration can be performed using the MAX17055 Evaluation Kit and the accompanying software.
  • The MAX17055ETB+T is rated for operation over the -40°C to +85°C temperature range. However, the device's accuracy and performance may degrade at extreme temperatures. It is recommended to consult the datasheet and the MAX17055 Reliability and Quality application note (AN-1140) for more information on temperature-related considerations.
  • Yes, the MAX17055ETB+T is designed to support multiple battery chemistries, including lithium-ion, lithium-polymer, and lead-acid batteries. The device's internal registers can be adjusted to accommodate different battery chemistries and capacities. However, it is recommended to consult the datasheet and the MAX17055 Battery Chemistry Support application note (AN-1141) for more information on specific battery chemistry support.
  • The MAX17055ETB+T provides built-in battery protection features, including overcharge, over-discharge, and short-circuit protection. The device can be configured to trigger external protection circuits or to shut down the system in case of a fault condition. The implementation of battery protection using the MAX17055ETB+T is described in the datasheet and the MAX17055 Battery Protection application note (AN-1142).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17055ETB+T Overview

Use the download button to access the MAX17055ETB+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
