MAX17055EWL+T - Analog Devices

Description: 7µA 1-Cell Fuel Gauge with ModelGauge m5 EZ

Download MAX17055EWL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

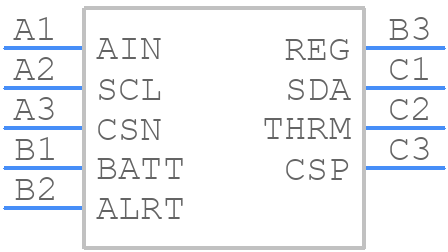

MAX17055EWL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17055EWL+T - Analog Devices PCB footprint - BGA - BGA - 9 WLP_2024
click to zoom
3D Models
MAX17055EWL+T - Analog Devices - 3D model - BGA - 9 WLP_2024
click to zoom

MAX17055EWL+T Details

  • Manufacturer Part Number:

    MAX17055EWL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    9-WLCSP-N/A

  • Package Description:

    WLP-9

  • Pin Count:

    9

  • Manufacturer Package Code:

    9-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-03-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PBGA-B9

  • Length:

    1.498 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Voltage-Max (Vsup):

    4.9 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.407 mm

MAX17055EWL+T Frequently Asked Questions (FAQs)

  • The MAX17055EWL+T requires careful layout and placement to ensure optimal performance. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths. Additionally, it is recommended to place the device near the battery and to use a separate power plane for the device's power supply.
  • The MAX17055EWL+T requires calibration to ensure accurate fuel gauge readings. Calibration involves setting the device's internal registers to match the specific battery chemistry and capacity. This can be done using the device's built-in calibration mode, which involves charging and discharging the battery while monitoring the device's output. The calibration process is typically done during manufacturing, but it may need to be repeated if the battery is replaced or if the device is used in a different application.
  • The MAX17055EWL+T has an operating temperature range of -40°C to +85°C. However, the device's accuracy and performance may degrade at extreme temperatures. It is recommended to operate the device within the recommended temperature range to ensure optimal performance and accuracy.
  • Yes, the MAX17055EWL+T can be used with multiple battery chemistries, including lithium-ion, lithium-polymer, and lead-acid batteries. However, the device's internal registers may need to be adjusted to match the specific battery chemistry and capacity. Additionally, the device's calibration process may need to be repeated for each different battery chemistry.
  • The MAX17055EWL+T has built-in fault detection and protection features to handle battery faults, such as overcharge or over-discharge. The device can detect these faults and alert the system through its interrupt pins. The device can also be configured to take action to prevent damage to the battery, such as shutting down the system or disconnecting the battery.
