MAX17075ETG+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX17075ETG+ - BOOST REG W/CHARGE PUMP, TQFN-24

Download MAX17075ETG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

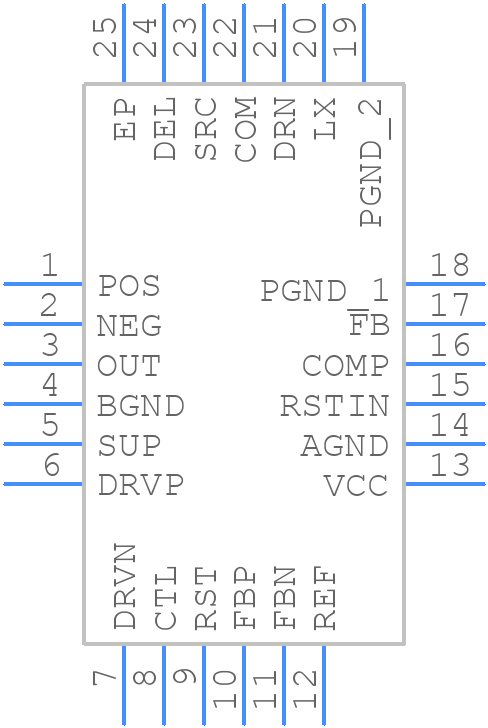

MAX17075ETG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17075ETG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX17075ETG+
click to zoom
3D Models
MAX17075ETG+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX17075ETG+
click to zoom

MAX17075ETG+ Details

  • Manufacturer Part Number:

    MAX17075ETG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-11-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Output Voltage-Max:

    18 V

  • Output Voltage-Min:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1400 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX17075ETG+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17075ETG+ involves keeping the device close to the battery, using a solid ground plane, and minimizing the length of the battery voltage and current sense lines. Additionally, it's recommended to place the device on the same side of the PCB as the battery and to use a 4-layer PCB with a dedicated power plane to reduce noise and improve accuracy.
  • Calibration of the MAX17075ETG+ involves setting the device's internal registers to match the specific battery chemistry and characteristics. This can be done using the device's built-in calibration mode, which involves charging and discharging the battery while monitoring the device's output. The calibration process typically involves setting the device's gain and offset registers to match the battery's voltage and current characteristics.
  • Temperature can affect the accuracy of the MAX17075ETG+ by introducing errors in the device's voltage and current measurements. The device has a built-in temperature sensor that can be used to compensate for these errors. Additionally, the device's accuracy can be improved by using external temperature sensors and calibration techniques to account for temperature-related errors.
  • During battery charging and discharging, the MAX17075ETG+ should be configured to operate in the correct mode (charge or discharge) and the device's internal registers should be updated to reflect the changing battery state. The device's output should also be monitored to ensure that it remains within the specified operating range.
  • The recommended power-up sequence for the MAX17075ETG+ involves powering up the device after the battery voltage has stabilized, and then initializing the device's internal registers and configuration. The power-up sequence should also ensure that the device's output is stable and accurate before it is used to monitor the battery state.
