MAX17075ETG+T - Analog Devices

Description: Switching Voltage Regulators Boost-Regulator with Integrated Charge Pumps, Switch Control, and High-Current Op Amp

Download MAX17075ETG+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

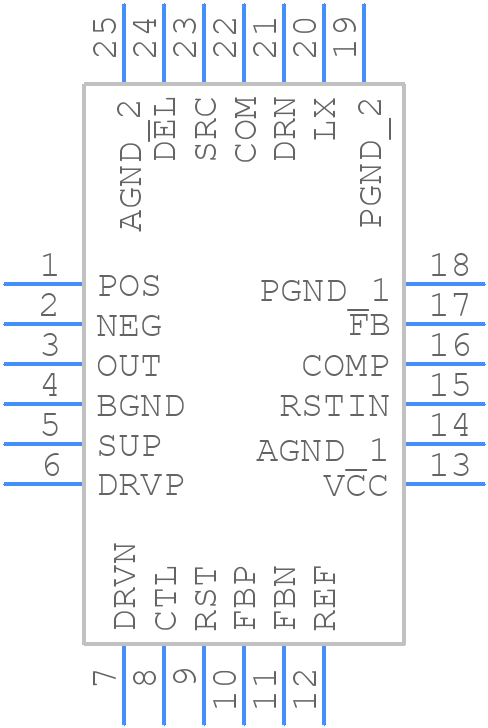

MAX17075ETG+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17075ETG+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2444+4
click to zoom
3D Models
MAX17075ETG+T - Analog Devices - 3D model - Quad Flat No-Lead - T2444+4
click to zoom

MAX17075ETG+T Details

  • Manufacturer Part Number:

    MAX17075ETG+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2008-11-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Output Voltage-Max:

    18 V

  • Output Voltage-Min:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1400 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX17075ETG+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17075ETG+T can be found in the MAX17075 Evaluation Kit documentation and the MAX17075 Layout Guidelines application note. It is essential to follow these guidelines to ensure proper operation and minimize noise and interference.
  • The MAX17075ETG+T requires calibration to ensure accurate fuel gauge readings. Calibration involves measuring the battery's capacity and internal resistance, and then programming the device with these values. The calibration process is described in the MAX17075 datasheet and the MAX17075 Calibration Guide application note.
  • The MAX17075ETG+T has an operating temperature range of -40°C to +85°C. However, the device's accuracy and performance may degrade at extreme temperatures. It is essential to ensure that the device operates within the recommended temperature range for optimal performance.
  • The MAX17075ETG+T is optimized for lithium-ion batteries, but it can be used with other battery chemistries with some modifications. However, the device's accuracy and performance may vary depending on the battery chemistry and characteristics. It is recommended to consult with Analog Devices' support team for guidance on using the MAX17075ETG+T with non-lithium-ion batteries.
  • The MAX17075ETG+T has a 1-Wire interface that can be connected to a microcontroller or other digital systems. The device communicates using a proprietary 1-Wire protocol, and the interface requires a pull-up resistor and a capacitor for proper operation. The MAX17075 datasheet and the MAX17075 Interface Guide application note provide more information on interfacing the device with digital systems.
