MAX17227AATA+T - Analog Devices

Description: Boost Switching Regulator IC Positive Adjustable 2.3V 1 Output 850mA 8-WFDFN Exposed Pad

Download MAX17227AATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

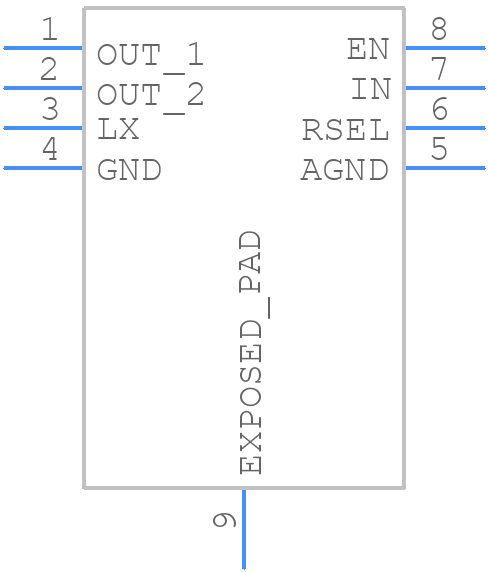

MAX17227AATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17227AATA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822+3C
click to zoom
3D Models
MAX17227AATA+T - Analog Devices - 3D model - Small Outline No-lead - T822+3C
click to zoom

MAX17227AATA+T Details

  • Manufacturer Part Number:

    MAX17227AATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-08-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.95 V

  • Input Voltage-Nom:

    1.5 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    2.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX17227AATA+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17227AATA+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to place the device away from high-current carrying traces and to use a low-ESR capacitor for the output capacitor.
  • The selection of input and output capacitors for the MAX17227AATA+T depends on the specific application requirements. In general, a low-ESR capacitor with a value between 1uF to 10uF is recommended for the output capacitor, while a ceramic capacitor with a value between 1uF to 4.7uF is recommended for the input capacitor. The capacitor selection should also consider the voltage rating, temperature range, and ripple current rating.
  • The MAX17227AATA+T can handle an input voltage up to 28V, but it is recommended to operate the device within the specified input voltage range of 4.5V to 24V for optimal performance and reliability.
  • The MAX17227AATA+T can be configured for a specific output voltage by connecting a resistor divider network between the output pin and the ground pin. The output voltage can be calculated using the formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
  • The typical startup time for the MAX17227AATA+T is around 1ms, but it can vary depending on the input voltage, output voltage, and load current. The startup time can be affected by the soft-start feature, which can be enabled or disabled depending on the application requirements.
