MAX17227JANT+T - Analog Devices

Description: 400mV to 5.5V Input, 500mA nanoPower Boost Converter with Short-Circuit Protection and Automatic Pass-Through Mode

Download MAX17227JANT+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

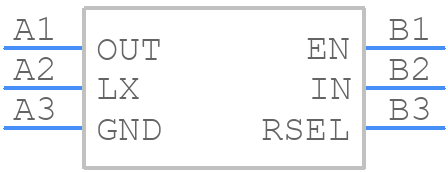

Symbol
MAX17227JANT+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17227JANT+T - Analog Devices PCB footprint - BGA - BGA - N60O1+1_-1
click to zoom
3D Models
MAX17227JANT+T - Analog Devices - 3D model - BGA - N60O1+1_-1
click to zoom

MAX17227JANT+T Details

  • Manufacturer Part Number:

    MAX17227JANT+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-WLCSP-N/A

  • Package Description:

    WLP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-07-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.4 V

  • Input Voltage-Nom:

    1.5 V

  • JESD-30 Code:

    R-XBGA-B6

  • Length:

    1.578 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    5.4 V

  • Output Voltage-Min:

    2.3 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    RECTANGULAR

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    0.888 mm

MAX17227JANT+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17227JANT+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. It's also important to keep the device away from high-current carrying traces and heat sources.
  • To optimize the performance of the MAX17227JANT+T, you should consider factors such as the input voltage range, output voltage requirements, and load current. You should also ensure that the device is operated within its recommended operating conditions, and that the input and output capacitors are properly selected and placed.
  • The MAX17227JANT+T has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated at a junction temperature below 125°C. This can be achieved by providing adequate heat sinking, using a thermal pad, and keeping the device away from heat sources.
  • To troubleshoot issues with the MAX17227JANT+T, you should first check the input voltage, output voltage, and load current to ensure they are within the recommended operating conditions. You should also check the device's thermal performance, and ensure that the input and output capacitors are properly selected and placed. If the issue persists, you may need to consult the datasheet or contact Analog Devices Inc for further assistance.
  • The MAX17227JANT+T is designed to meet EMI and EMC requirements, but it's still important to take precautions to minimize electromagnetic interference. This can be achieved by using a solid ground plane, keeping the device away from high-frequency sources, and using shielding and filtering as necessary.
