MAX17250ANC+T - Analog Devices

Description: 2.7V to 18V Input, Boost Converter with 0.1uA True Shutdown, Short Circuit Protection and Selectable Input Current Limit

Download MAX17250ANC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

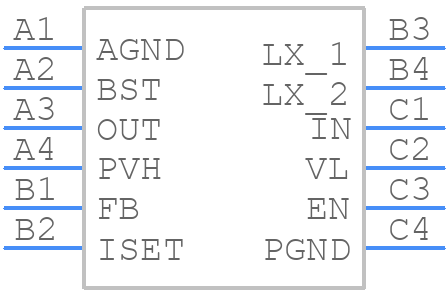

Symbol
MAX17250ANC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17250ANC+T - Analog Devices PCB footprint - BGA - BGA - N121B1+1-1
click to zoom
3D Models
MAX17250ANC+T - Analog Devices - 3D model - BGA - N121B1+1-1
click to zoom

MAX17250ANC+T Details

  • Manufacturer Part Number:

    MAX17250ANC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-WLCSP-N/A

  • Package Description:

    WLP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-WLCSP-N/A

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-10-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    7.2 V

  • JESD-30 Code:

    R-XBGA-B12

  • Length:

    1.688 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4.55 A

  • Output Voltage-Max:

    18 V

  • Output Voltage-Min:

    3 V

  • Output Voltage-Nom:

    10 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1000 kHz

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.457 mm

MAX17250ANC+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17250ANC+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to place the device near the power source and to use a low-ESR capacitor for the output capacitor.
  • To optimize the performance of the MAX17250ANC+T, you should consider factors such as the input voltage range, output voltage, and load current. You should also ensure that the device is operated within its recommended operating conditions, and that the input and output capacitors are properly selected. Additionally, you can use simulation tools such as SPICE models to simulate the device's performance and optimize the design.
  • The MAX17250ANC+T has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated at a junction temperature below this maximum rating. This can be achieved by providing adequate heat sinking, using a thermally conductive PCB material, and minimizing the power dissipation in the device. The thermal resistance of the device is typically around 30°C/W.
  • To troubleshoot issues with the MAX17250ANC+T, you should first check the input voltage and ensure that it is within the recommended range. You should also check the output voltage and ensure that it is within the expected range. Additionally, you should check the device's operating temperature and ensure that it is within the recommended range. If the issue persists, you can use a oscilloscope to check the device's output waveform and identify any anomalies.
  • The MAX17250ANC+T is designed to meet the EMI and EMC requirements of most applications. However, to ensure compliance, you should take steps to minimize electromagnetic interference (EMI) and ensure electromagnetic compatibility (EMC). This can be achieved by using a shielded enclosure, minimizing the length of the traces, and using EMI filters or shielding on the input and output lines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17250ANC+T Overview

Use the download button to access the MAX17250ANC+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Switching Regulator or Controllers
