MAX17260SEWL+T - Analog Devices

Description: 5.1µA 1-Cell Fuel Gauge with ModelGauge m5 EZ and Optional High-Side Current Sensing

Download MAX17260SEWL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

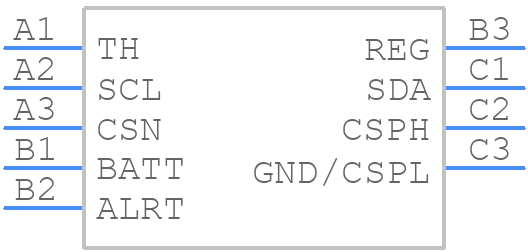

Symbol
MAX17260SEWL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17260SEWL+T - Analog Devices PCB footprint - BGA - BGA - W91G1+2
click to zoom
3D Models
MAX17260SEWL+T - Analog Devices - 3D model - BGA - W91G1+2
click to zoom

MAX17260SEWL+T Details

  • Manufacturer Part Number:

    MAX17260SEWL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    9-WLCSP-N/A

  • Package Description:

    WLP-9

  • Pin Count:

    9

  • Manufacturer Package Code:

    9-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-06-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE
