MAX17261METD+ - Analog Devices

Description: Battery Management 5µA Multi-Cell Fuel Gauge with ModelGauge m5 EZ

Download MAX17261METD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

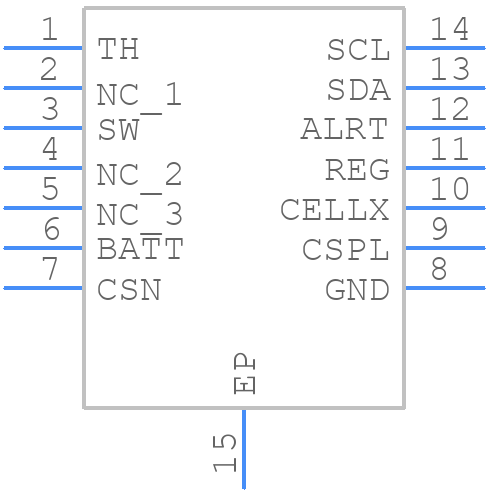

Symbol
MAX17261METD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17261METD+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 14 TDFN 21-0137
click to zoom
3D Models
MAX17261METD+ - Analog Devices - 3D model - Small Outline No-lead - 14 TDFN 21-0137
click to zoom

MAX17261METD+ Details

  • Manufacturer Part Number:

    MAX17261METD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-LFCSP-3X3X0.75

  • Package Description:

    TDFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-06-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    S-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.12,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    4.9 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17261METD+ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power paths. Avoid routing sensitive analog signals near the switching node.
  • The inductor value depends on the input voltage, output voltage, and switching frequency. A good starting point is to use the inductor value recommended in the datasheet. You can also use the online inductor selection tool provided by Analog Devices or consult with their application engineers.
  • The MAX17261METD+ is rated for operation from -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • Yes, the MAX17261METD+ is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure that you follow the recommended design and manufacturing guidelines to meet the specific requirements of your application.
  • Start by checking the input voltage, output voltage, and switching frequency. Verify that the component values and PCB layout meet the recommended specifications. Use an oscilloscope to inspect the waveforms and identify any anomalies. Consult the datasheet and application notes for troubleshooting guidelines and contact Analog Devices' support team if needed.
