MAX17262HEWL+T - Analog Devices

Description: 5.2µA 1-Cell Fuel Gauge with ModelGauge m5 EZ and Internal Current Sensing

Download MAX17262HEWL+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

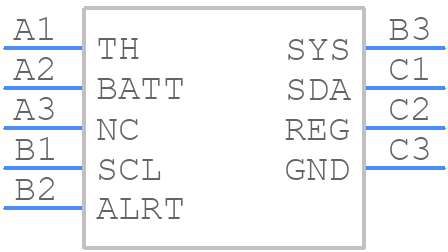

MAX17262HEWL+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17262HEWL+T - Analog Devices PCB footprint - BGA - BGA - 21-100168
click to zoom
3D Models
MAX17262HEWL+T - Analog Devices - 3D model - BGA - 21-100168
click to zoom

MAX17262HEWL+T Details

  • Manufacturer Part Number:

    MAX17262HEWL+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    9-WLCSP-N/A

  • Package Description:

    VFBGA, BGA9,3X3,16

  • Pin Count:

    9

  • Manufacturer Package Code:

    9-WLCSP-N/A

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-08-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    Cascade Function:N;CTL:N;Integrated MOSFET:N;PS:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-XBGA-B9

  • Length:

    1.468 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    0.03 mA

  • Supply Voltage-Max (Vsup):

    4.9 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.448 mm

MAX17262HEWL+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17262HEWL+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the noise-sensitive analog traces away from the digital traces.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, while the output capacitor should be a low-ESR ceramic capacitor with a value between 10uF to 22uF. The capacitor selection also depends on the specific application requirements, such as the input voltage, output voltage, and output current.
  • The MAX17262HEWL+T can handle an input voltage up to 28V, but it's recommended to operate the device within the specified input voltage range of 4.5V to 24V for optimal performance and reliability.
  • The EN pin is an active-high enable pin, which means that the device is enabled when the EN pin is high (above 1.4V) and disabled when the EN pin is low (below 0.4V). The EN pin can be connected to a logic signal or a power supply voltage to enable or disable the device.
  • The typical startup time of the MAX17262HEWL+T is around 1ms, but it can vary depending on the input voltage, output voltage, and output current. The startup time can be affected by the soft-start feature, which can be enabled or disabled through the SS pin.
