MAX17270ENE+T - Analog Devices

Description: Switching Voltage Regulators Triple-Output Nanopower Buck-Boost

Download MAX17270ENE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

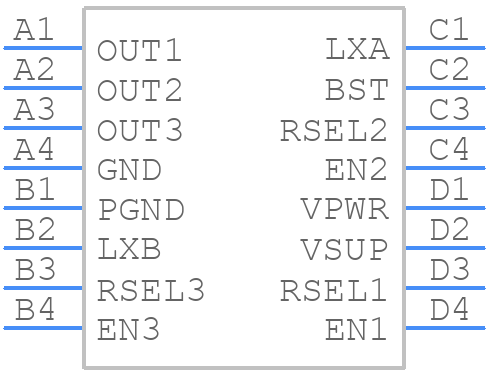

Symbol
MAX17270ENE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17270ENE+T - Analog Devices PCB footprint - BGA - BGA - N161A1+1-2
click to zoom
3D Models
MAX17270ENE+T - Analog Devices - 3D model - BGA - N161A1+1-2
click to zoom

MAX17270ENE+T Details

  • Manufacturer Part Number:

    MAX17270ENE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-WLCSP-N/A

  • Package Description:

    WLP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-WLCSP-N/A

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-10-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.7 V

  • JESD-30 Code:

    S-XBGA-B16

  • Length:

    1.768 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    4.6 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA16,4X4,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Current-Max (Isup):

    0.003 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.768 mm

MAX17270ENE+T Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX17270ENE+T is to keep the input and output capacitors close to the device, and to use a solid ground plane to minimize noise and EMI. Additionally, it is recommended to use a separate power plane for the input voltage and to keep the output voltage traces away from the input voltage traces.
  • To optimize the performance of the MAX17270ENE+T, it is recommended to carefully select the input and output capacitors based on the specific requirements of your application. Additionally, adjusting the compensation network and the soft-start timing can also help to optimize the performance of the device.
  • The maximum operating temperature range for the MAX17270ENE+T is -40°C to +125°C. However, it is recommended to derate the device's performance at high temperatures to ensure reliable operation.
  • Yes, the MAX17270ENE+T is qualified for use in high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard and is available in a variety of package options, including a 16-pin TQFN package that is suitable for high-reliability applications.
  • To troubleshoot issues with the MAX17270ENE+T, it is recommended to first check the input and output voltages, as well as the current consumption of the device. Additionally, checking the device's operating frequency and the voltage on the EN pin can also help to identify the source of the issue.
