MAX17300X+T - Analog Devices

Description: 1-Cell ModelGauge m5 EZ Fuel Gauge with Protector, Internal Self-Discharge Detection and SHA-256 Authentication

Download MAX17300X+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

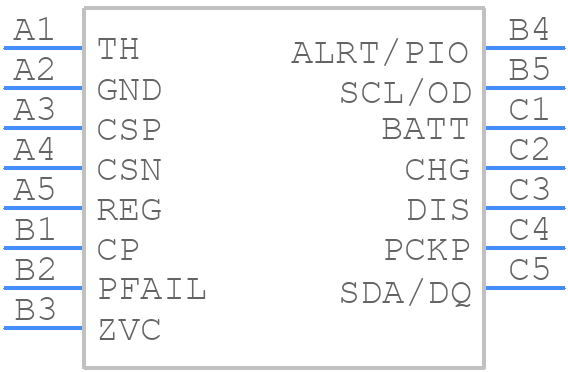

MAX17300X+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17300X+T - Analog Devices PCB footprint - BGA - BGA - W151H2+1
click to zoom
3D Models
MAX17300X+T - Analog Devices - 3D model - BGA - W151H2+1
click to zoom

MAX17300X+T Details

  • Manufacturer Part Number:

    MAX17300X+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    15-WLCSP-N/A

  • Package Description:

    WLP-15

  • Pin Count:

    15

  • Manufacturer Package Code:

    15-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-06-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    Cascade Function:N;CTL:Y;Integrated MOSFET:N;PS:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PBGA-B15

  • Length:

    2.448 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA15,3X5,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    4.9 V

  • Supply Voltage-Min (Vsup):

    2.16 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.678 mm

MAX17300X+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17300X+T involves keeping the device close to the battery, using a solid ground plane, and minimizing the length of the high-current paths. It's also important to keep the device away from high-frequency noise sources and to use a low-ESR capacitor for the input capacitor.
  • To optimize the performance of the MAX17300X+T, you should consider factors such as the input voltage range, output voltage, and current requirements of your application. You should also ensure that the device is properly configured and that the external components are selected correctly. Additionally, you can use simulation tools and models provided by Analog Devices to simulate and optimize the performance of the device in your specific application.
  • The MAX17300X+T has a high-power density and can generate significant heat during operation. To ensure reliable operation, it's important to provide adequate thermal management, such as a heat sink or thermal pad, and to keep the device away from other heat sources. You should also ensure that the device is operated within its recommended temperature range and that the thermal design is validated through simulation and testing.
  • To troubleshoot issues with the MAX17300X+T, you should start by checking the device's configuration and external components. You should also verify that the input voltage and current are within the recommended range and that the device is properly connected to the load. Additionally, you can use debugging tools such as oscilloscopes and logic analyzers to monitor the device's behavior and identify the root cause of the issue.
  • The MAX17300X+T is a high-frequency device and can generate electromagnetic interference (EMI). To minimize EMI, you should use proper shielding, grounding, and layout techniques. You should also ensure that the device is operated within its recommended frequency range and that the external components are selected to minimize EMI. Additionally, you should comply with relevant EMC standards and regulations for your application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17300X+T Overview

Use the download button to access the MAX17300X+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Power Management Circuits
