MAX17303G+T - Analog Devices

Description: 1-Cell ModelGauge m5 EZ Fuel Gauge with Protector, Internal Self-Discharge Detection and SHA-256 Authentication

Download MAX17303G+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

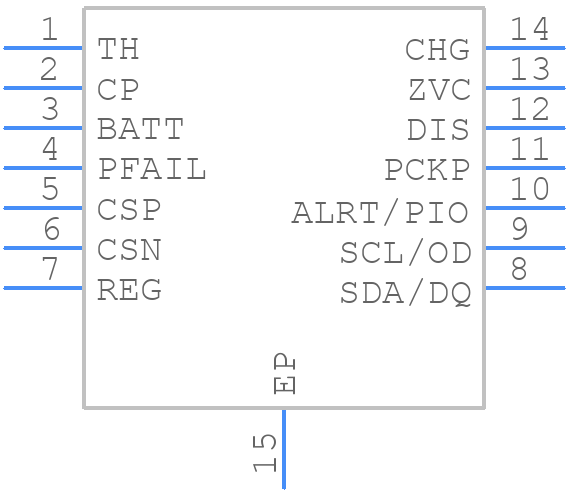

MAX17303G+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17303G+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1433+2C
click to zoom
3D Models
MAX17303G+T - Analog Devices - 3D model - Small Outline No-lead - T1433+2C
click to zoom

MAX17303G+T Details

  • Manufacturer Part Number:

    MAX17303G+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    14-LFCSP-3X3X0.75

  • Package Description:

    TDFN-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    14-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-06-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    Cascade Function:N;CTL:Y;Integrated MOSFET:N;PS:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    S-PDSO-N14

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC14,.12,16

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    4.9 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17303G+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17303G+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it is recommended to place the device near the battery and to use a separate power plane for the device.
  • To optimize the performance of the MAX17303G+T, ensure that the input and output capacitors are of high quality and have low ESR, use a low-impedance power source, and minimize the noise on the input and output lines. Additionally, optimize the layout and placement of the device as mentioned earlier, and ensure that the device is operated within its recommended operating conditions.
  • The maximum allowed voltage on the input pins of the MAX17303G+T is 6V. Exceeding this voltage can damage the device.
  • The MAX17303G+T is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's performance and to ensure that the device is operated within its recommended operating conditions.
  • To troubleshoot issues with the MAX17303G+T, start by verifying that the device is properly powered and that the input and output capacitors are properly connected. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions. Use an oscilloscope to check the input and output waveforms, and consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17303G+T Overview

Use the download button to access the MAX17303G+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
