MAX17303X+T - Analog Devices

Description: 1-Cell ModelGauge m5 EZ Fuel Gauge with Protector, Internal Self-Discharge Detection and SHA-256 Authentication

Download MAX17303X+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

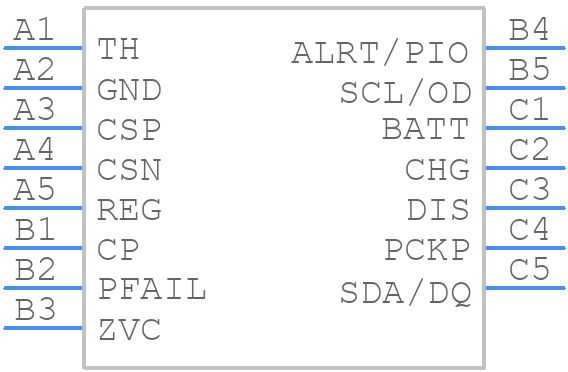

MAX17303X+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17303X+T - Analog Devices PCB footprint - BGA - BGA - W151H2+1-1
click to zoom
3D Models
MAX17303X+T - Analog Devices - 3D model - BGA - W151H2+1-1
click to zoom

MAX17303X+T Details

  • Manufacturer Part Number:

    MAX17303X+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    15-WLCSP-N/A

  • Package Description:

    WLP-15

  • Pin Count:

    15

  • Manufacturer Package Code:

    15-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-06-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    Cascade Function:N;CTL:Y;Integrated MOSFET:N;PS:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PBGA-B15

  • Length:

    2.448 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA15,3X5,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    4.9 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.678 mm

MAX17303X+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17303X+T can be found in the MAX17303X+T Evaluation Kit documentation and the MAX17303X+T Layout Guidelines application note. It is essential to follow these guidelines to ensure proper operation and minimize noise and EMI.
  • The output capacitor selection depends on the specific application requirements, such as output voltage, current, and ripple. A general guideline is to use a low-ESR ceramic capacitor with a value between 10uF to 22uF. Refer to the MAX17303X+T datasheet and application notes for more detailed guidance.
  • The MAX17303X+T can handle input voltages up to 28V, but it is recommended to operate within the specified input voltage range of 4.5V to 24V for optimal performance and reliability.
  • The MAX17303X+T is rated for operation up to 125°C, but it is essential to consider the derating of the device's performance and reliability at high temperatures. Refer to the datasheet and application notes for more information on thermal considerations.
  • The MAX17303X+T has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold can be set by selecting the appropriate resistor value. Refer to the datasheet and application notes for more detailed information on implementing OVP.
