MAX17311X+ - Analog Devices

Description: 1-Cell ModelGauge m5 EZ Fuel Gauge with Protector, Internal Self-Discharge Detection and SHA-256 Authentication

Download MAX17311X+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

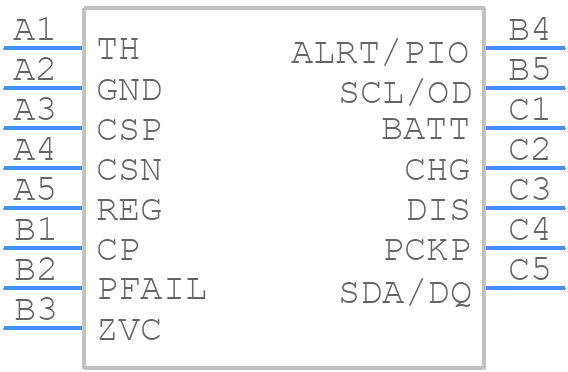

MAX17311X+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17311X+ - Analog Devices PCB footprint - BGA - BGA - W151H2+1
click to zoom
3D Models
MAX17311X+ - Analog Devices - 3D model - BGA - W151H2+1
click to zoom

MAX17311X+ Details

  • Manufacturer Part Number:

    MAX17311X+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    15-WLCSP-N/A

  • Package Description:

    WLP-15

  • Pin Count:

    15

  • Manufacturer Package Code:

    15-WLCSP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2019-06-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    Cascade Function:N;CTL:Y;Integrated MOSFET:N;PS:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY GAUGE

  • JESD-30 Code:

    R-PBGA-B15

  • Length:

    2.448 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA15,3X5,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.69 mm

  • Supply Current-Max (Isup):

    0.05 mA

  • Supply Voltage-Max (Vsup):

    4.9 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.678 mm

MAX17311X+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17311X+ involves keeping the device close to the battery, using a solid ground plane, and minimizing the length of the high-current paths. It's also important to keep the device away from heat sources and ensure good airflow around the device.
  • The selection of external components for the MAX17311X+ depends on the specific application requirements. For example, the choice of inductor and capacitor values depends on the input voltage, output voltage, and maximum current requirements. Analog Devices provides a design tool and application notes to help with component selection.
  • The MAX17311X+ is rated for operation from -40°C to +85°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures, and additional thermal management may be required in high-temperature applications.
  • The MAX17311X+ has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold can be set by selecting the appropriate resistor values. Additionally, external OVP circuits can be implemented using discrete components or dedicated OVP ICs.
  • The recommended startup sequence for the MAX17311X+ involves applying the input voltage, followed by the enable signal, and then the battery voltage. This sequence ensures that the device starts up correctly and avoids any potential latch-up or damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17311X+ Overview

Use the download button to access the MAX17311X+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Power Management Circuits
