MAX1737EEI+ - Analog Devices

Description: Switch-Mode Lithium-ion Battery-Charger

Download MAX1737EEI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

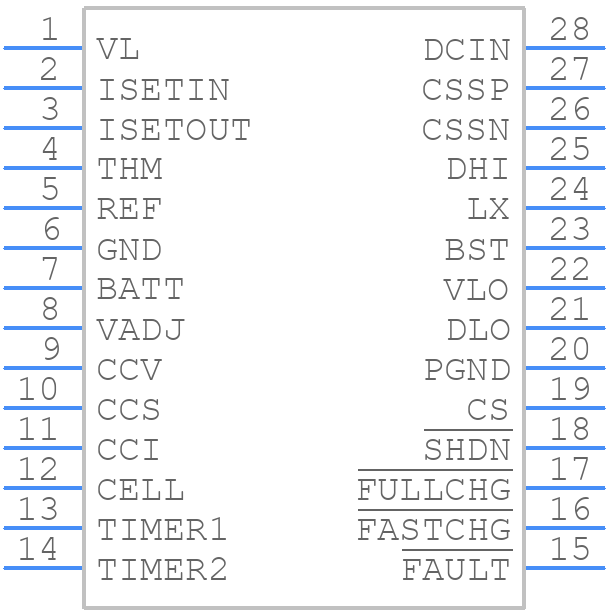

MAX1737EEI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1737EEI+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E28+1-1
click to zoom
3D Models
MAX1737EEI+ - Analog Devices - 3D model - Small Outline Packages - E28+1-1
click to zoom

MAX1737EEI+ Details

  • Manufacturer Part Number:

    MAX1737EEI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-QSOP-150_MIL

  • Package Description:

    QSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2000-04-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    LINEAR BATTERY CHARGER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.89 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.73 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    340 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

MAX1737EEI+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX1737EEI+ involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the noise-sensitive analog traces away from the digital traces.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 10uF to 22uF, while the output capacitor should be a low-ESR ceramic capacitor with a value between 22uF to 47uF. The capacitor values and types may vary depending on the specific application and operating conditions.
  • The MAX1737EEI+ can handle input voltages up to 28V, but it's recommended to operate it within the specified input voltage range of 4.5V to 24V for optimal performance and reliability.
  • The MAX1737EEI+ can be programmed using an external resistor divider network connected to the FB pin. The output voltage can be calculated using the formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
  • The typical efficiency of the MAX1737EEI+ is around 95% at full load, but it may vary depending on the input voltage, output voltage, and operating conditions.
