MAX17501BATB+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX17501BATB+T - Synchronous Buck (Step Down), Switching Regulator, Fixed, 4.5V to 60V In, 5V/0.5A Out, TDFN-10

Download MAX17501BATB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

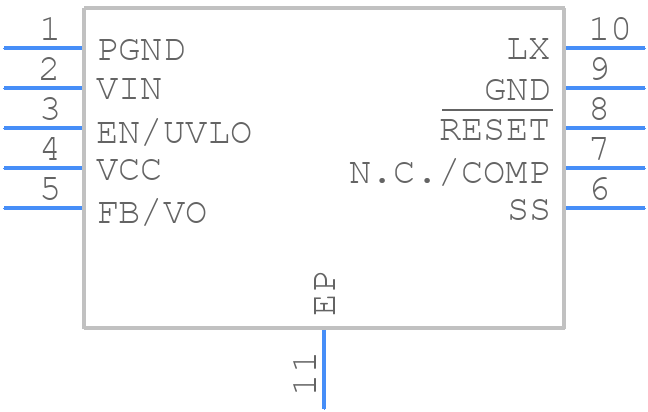

MAX17501BATB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17501BATB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1032N+1
click to zoom
3D Models
MAX17501BATB+T - Analog Devices - 3D model - Small Outline No-lead - T1032N+1
click to zoom

MAX17501BATB+T Details

  • Manufacturer Part Number:

    MAX17501BATB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X2X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-06-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.86 A

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    RECTANGULAR

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    640 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX17501BATB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17501BATB+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 4.7uF to 10uF, and the output capacitor should be a low-ESR ceramic capacitor with a value between 10uF to 22uF. The capacitor selection also depends on the specific application requirements, such as ripple current, voltage rating, and physical size.
  • The MAX17501BATB+T has an operating temperature range of -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet to ensure reliable operation.
  • The MAX17501BATB+T has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold can be set by selecting the appropriate resistor value between the OVP pin and the input voltage. The datasheet provides more information on how to implement OVP for the device.
  • The recommended input voltage range for the MAX17501BATB+T is 2.7V to 5.5V, but the device can operate with input voltages as low as 2.5V and as high as 6V. However, the output voltage regulation and efficiency may be affected at input voltages outside the recommended range.
