MAX17501GATB+T - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX17501GATB+T - DC/DC Buck (Step Down) Regulator, Adjustable, 4.5V to 60V, 0.9V to 54V/0.5A Out, 600kHz, TDFN-EP-10

Download MAX17501GATB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

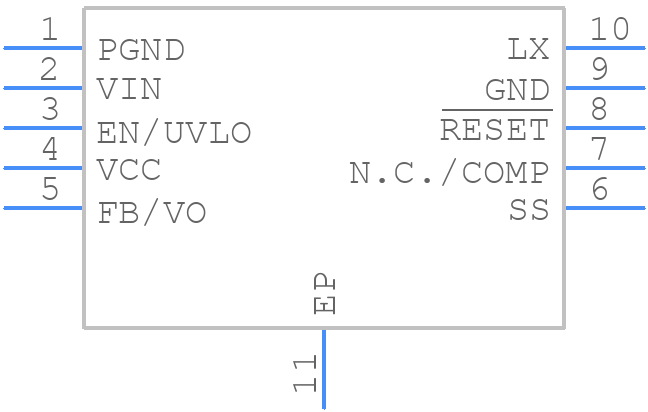

MAX17501GATB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17501GATB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1032N+1
click to zoom
3D Models
MAX17501GATB+T - Analog Devices - 3D model - Small Outline No-lead - T1032N+1
click to zoom

MAX17501GATB+T Details

  • Manufacturer Part Number:

    MAX17501GATB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X2X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-06-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.86 A

  • Package Body Material:

    RECTANGULAR

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    640 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX17501GATB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17501GATB+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the digital and analog signals separate to reduce noise and interference.
  • The selection of input and output capacitors for the MAX17501GATB+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output voltage ripple and transient response. A good starting point is to use 10uF capacitors for both input and output.
  • The MAX17501GATB+T is rated for operation over a temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to derate the device's performance and ensure proper thermal management to ensure reliable operation over the desired temperature range.
  • To troubleshoot issues with the MAX17501GATB+T, start by checking the input voltage, output voltage, and current consumption. Verify that the input and output capacitors are properly connected and meet the recommended specifications. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and current waveforms to identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The MAX17501GATB+T is a high-reliability device, but it's essential to evaluate its suitability for safety-critical applications. Ensure that the device meets the required safety standards and regulations, such as IEC 61508 or ISO 26262. Perform thorough testing and validation to ensure the device's performance and reliability meet the application's requirements. Consult with Analog Devices' technical support and safety experts to determine the device's suitability for your specific application.
