MAX17523AATE+ - Analog Devices

Description: Current & Power Monitors & Regulators Adjustable Overvoltage and Overcurrent Protectors with High Accuracy

Download MAX17523AATE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

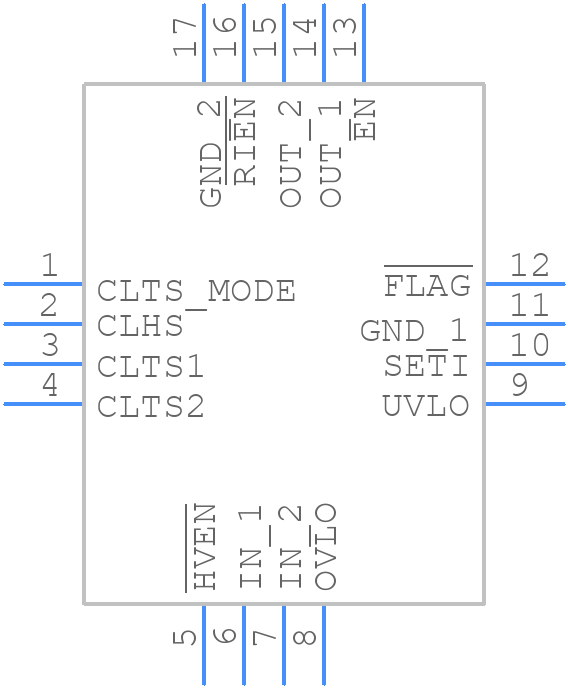

MAX17523AATE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17523AATE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633+5C(H=0.8mm)
click to zoom
3D Models
MAX17523AATE+ - Analog Devices - 3D model - Quad Flat No-Lead - T1633+5C(H=0.8mm)
click to zoom

MAX17523AATE+ Details

  • Manufacturer Part Number:

    MAX17523AATE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-02-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    OVERVOLTAGE DETECTOR

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX17523AATE+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17523AATE+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • Optimizing the compensation network for the MAX17523AATE+ involves selecting the right values for the compensation resistors and capacitors. A good starting point is to use the values recommended in the datasheet. Then, use simulation tools or empirical methods to fine-tune the values based on the specific application requirements. It's essential to consider factors such as the output capacitor value, the output voltage, and the load current.
  • The MAX17523AATE+ can handle input voltages up to 60V, but it's essential to ensure that the input voltage does not exceed the absolute maximum rating of 65V. Additionally, the device can handle high-voltage transients, but it's recommended to use input protection circuits, such as TVS diodes, to prevent damage from voltage spikes or surges.
  • Ensuring the stability of the MAX17523AATE+ involves following the recommended layout guidelines, selecting the right output capacitor value, and optimizing the compensation network. Additionally, it's essential to consider the output voltage, the load current, and the input voltage ripple. Simulation tools, such as SPICE, can be used to verify the stability of the design.
  • The typical efficiency of the MAX17523AATE+ is around 95% to 97%, depending on the input voltage, output voltage, and load current. The efficiency can be optimized by selecting the right output capacitor value, optimizing the compensation network, and minimizing the input voltage ripple.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17523AATE+ Overview

Use the download button to access the MAX17523AATE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
