MAX17523ATE+ - Analog Devices

Description: Maxim MAX17523ATE+, Voltage Monitor 3.5V max. 16-Pin, TQFN

Download MAX17523ATE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

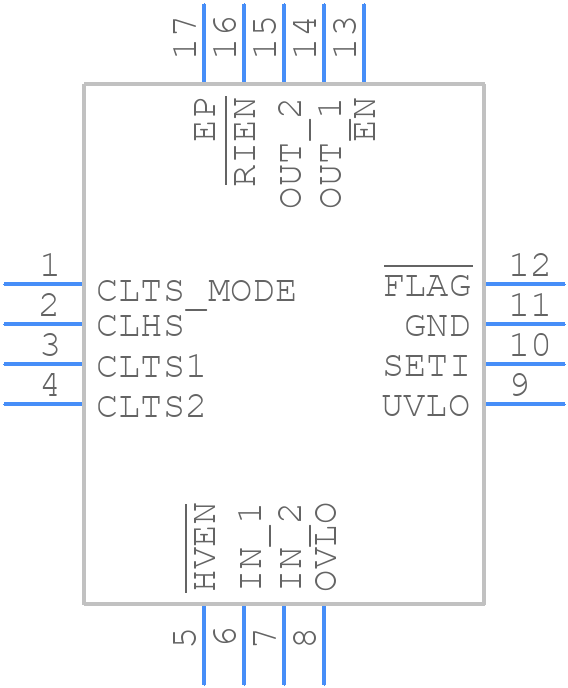

MAX17523ATE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17523ATE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TQFN16
click to zoom
3D Models
MAX17523ATE+ - Analog Devices - 3D model - Quad Flat No-Lead - TQFN16
click to zoom

MAX17523ATE+ Details

  • Manufacturer Part Number:

    MAX17523ATE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-02-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    OVERVOLTAGE DETECTOR

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17523ATE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17523ATE+ involves keeping the input capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the input capacitors. A 4-layer PCB with a solid ground plane is recommended. Refer to the MAX17523ATE+ evaluation kit layout for a reference design.
  • The compensation network for the MAX17523ATE+ involves selecting the right values for the compensation resistors and capacitors. The datasheet provides a general guideline for selecting these values, but the optimal values may vary depending on the specific application. It is recommended to use the MAX17523ATE+ evaluation kit and the accompanying software to optimize the compensation network for the specific application.
  • The maximum input voltage that the MAX17523ATE+ can handle is 32V. However, the device can be configured to handle higher input voltages by using an external voltage divider network. Refer to the datasheet for more information on how to implement an external voltage divider network.
  • The MAX17523ATE+ is specified to operate from -40°C to +125°C. To ensure that the device operates within its specified temperature range, it is recommended to provide adequate heat sinking and to avoid exposing the device to extreme temperatures. The device also has a built-in thermal shutdown feature that will shut down the device if it exceeds its maximum operating temperature.
  • The recommended input capacitor value for the MAX17523ATE+ is 10uF to 22uF. However, the optimal input capacitor value may vary depending on the specific application and the input voltage ripple requirements. It is recommended to use a low-ESR capacitor with a voltage rating that is at least 2x the maximum input voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17523ATE+ Overview

Use the download button to access the MAX17523ATE+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
