MAX17525ATP+T - Analog Devices

Description: Current & Power Monitors & Regulators Adjustable Power Limiter

Download MAX17525ATP+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

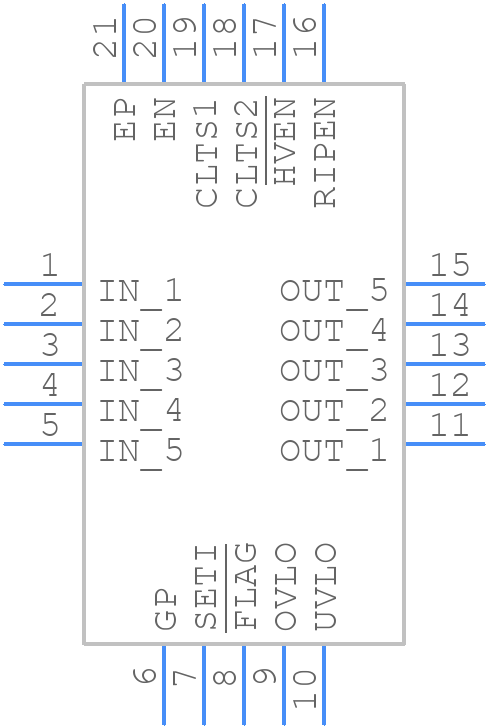

MAX17525ATP+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17525ATP+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2055+5C
click to zoom
3D Models
MAX17525ATP+T - Analog Devices - 3D model - Quad Flat No-Lead - T2055+5C
click to zoom

MAX17525ATP+T Details

  • Manufacturer Part Number:

    MAX17525ATP+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-5X5X0.75

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-09-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    5

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX17525ATP+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17525ATP+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 10uF to 22uF. The capacitor selection should be based on the specific application requirements, such as output voltage ripple and transient response.
  • The MAX17525ATP+T has an operating ambient temperature range of -40°C to +125°C, but the maximum junction temperature should not exceed 150°C. The device should be derated for temperatures above 85°C to ensure reliable operation.
  • The MAX17525ATP+T has a built-in OVP and UVP feature that can be enabled by connecting the OVP and UVP pins to the input voltage and a voltage reference, respectively. The OVP threshold is typically set to 1.2x the nominal input voltage, while the UVP threshold is typically set to 0.8x the nominal input voltage.
  • The recommended input voltage range for the MAX17525ATP+T is 4.5V to 60V, but the device can operate with input voltages as low as 3.5V and as high as 65V. However, the output voltage regulation and efficiency may be affected at these extreme input voltage ranges.
