MAX17526AATP+ - Analog Devices

Description: 5.5V to 60V, 6A Current-Limiter with OV, UV, Reverse Protection, and Power Limit

Download MAX17526AATP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

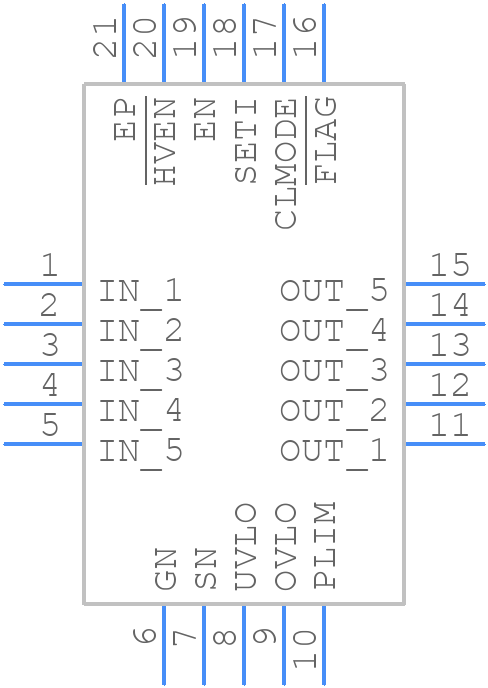

MAX17526AATP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17526AATP+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2055+6C
click to zoom
3D Models
MAX17526AATP+ - Analog Devices - 3D model - Quad Flat No-Lead - T2055+6C
click to zoom

MAX17526AATP+ Details

  • Manufacturer Part Number:

    MAX17526AATP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-5X5X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-09-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    UNDER/OVERVOLTAGE SUPERVISOR

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.2SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.9 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +12.4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX17526AATP+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17526AATP+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 10uF to 22uF. The capacitor selection should be based on the specific application requirements, such as output voltage ripple and transient response.
  • The MAX17526AATP+ has an operating ambient temperature range of -40°C to +125°C, but the maximum junction temperature should not exceed 150°C. The device should be derated for temperatures above 85°C to ensure reliable operation.
  • The MAX17526AATP+ has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor divider network. The resistor values should be chosen to set the overcurrent threshold based on the specific application requirements.
  • The recommended input voltage range for the MAX17526AATP+ is 2.7V to 5.5V, but the device can operate with input voltages as low as 2.5V. However, the output voltage regulation and efficiency may be affected at lower input voltages.
