- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MAX17526AATP+T
- Part Number MAX17526AATP+T
- Manufacturer Analog Devices
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 20 TQFN-EP *
- Released Date Jan 31, 2019
- Last Modified Date Oct 7, 2024 9:32 AM UTC
- Pinout / Pin List Click Here (Member Only)
MAX17526AATP+T Details
-
Manufacturer Part Number:
MAX17526AATP+T
-
Brand Name:
Analog Devices Inc
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
20-LFCSP-5X5X0.75
-
Package Description:
TQFN-20
-
Pin Count:
20
-
Manufacturer Package Code:
20-LFCSP-5X5X0.75
-
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
2018-09-18
MAX17526AATP+T Frequently Asked Questions (FAQs)
-
A good PCB layout for the MAX17526AATP+T involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise and ensure proper operation.
-
The selection of input and output capacitors for the MAX17526AATP+T depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF. The capacitor values can be adjusted based on the specific requirements of the system.
-
The MAX17526AATP+T has an operating ambient temperature range of -40°C to +125°C. However, the device can be operated at a maximum junction temperature of 150°C. It's essential to ensure that the device is operated within the specified temperature range to ensure reliable operation and prevent damage.
-
The MAX17526AATP+T has a built-in overvoltage protection (OVP) feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold can be set by selecting the appropriate resistor values. Additionally, external overvoltage protection circuits can be implemented using zener diodes or voltage supervisors to provide additional protection.
-
The recommended input voltage range for the MAX17526AATP+T is 4.5V to 38V. However, the device can operate with input voltages as low as 3.5V and as high as 40V. It's essential to ensure that the input voltage is within the specified range to ensure reliable operation and prevent damage.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MAX17526AATP+T Overview

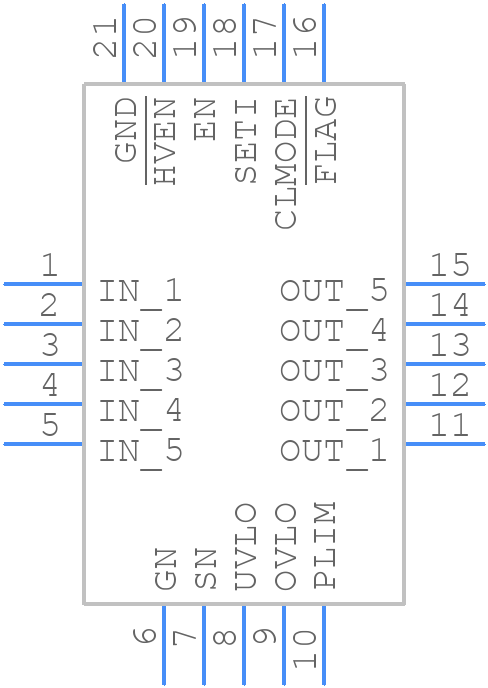

Use the download button to access the MAX17526AATP+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17,
or try a keyword search, such as Power Management Circuits
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
